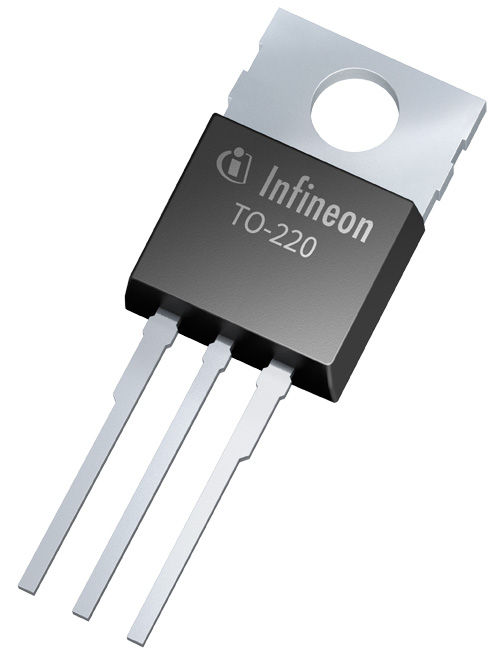

SPP02N60C3
SPP02N60C3
Data Sheet

Product details

  • ID (@25°C) max
    1.8 A
  • ID max
    1.8 A
  • IDpuls max
    5.4 A
  • Mounting
    THT
  • Operating Temperature min
    -55 °C
  • Package
    TO-220
  • Polarity
    N
  • Ptot max
    25 W
  • QG
    9.5 nC
  • QG (typ @10V)
    9.5 nC
  • RDS (on) max
    3000 mΩ
  • RDS (on) (@10V) max
    3000 mΩ
  • RthJA max
    62 K/W
  • RthJC max
    5 K/W
  • Rth
    5 K/W
  • VDS max
    600 V
  • VGS(th)
    2.1 V to 3.9 V
OPN
Product Status
Infineon Package
Package Name
Packing Size
Packing Type
Moisture Level
Moisture Packing
Lead-free
Halogen Free
RoHS Compliant
Infineon stock last updated:
Replacement for 600V CoolMOS™ C3 is CoolMOS™ P7 600V CoolMOS™ C3 is Infineon's third series of CoolMOS™ with market entry in 2001. C3 is the "working horse" of the portfolio.

Features

  • Low specific on-state resistance (RDS(on)*A)
  • Very low energy storage in output capacitance (Eoss) @400V
  • Low gate charge (Qg)
  • Fieldproven CoolMOS™ quality
  • CoolMOS™ technology has been manufactured by Infineon since 1998

Benefits

  • High efficiency and power density
  • Outstanding cost/performance
  • High reliability
  • Ease-of-use

Applications
