SPD30N03S2L-10 G
SPD30N03S2L-10 G
Data Sheet

Product details

  • Ciss
    1160 pF
  • Coss
    450 pF
  • ID max
    30 A
  • IDpuls max
    120 A

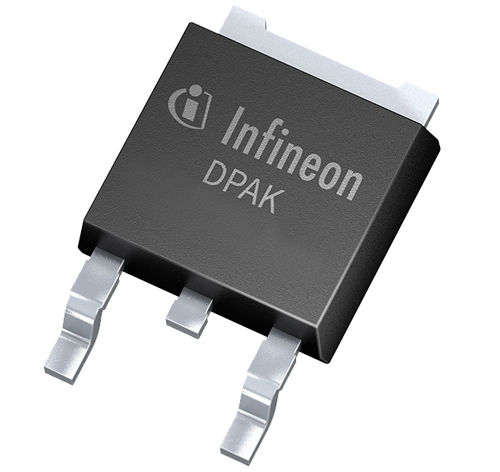

  • Package
    DPAK (TO-252)
  • Polarity
    N
  • Ptot max
    100 W
  • QG
    31.4 nC
  • RDS (on) max
    10 mΩ
  • RDS (on) (@4.5V) max
    14.6 mΩ
  • RDS (on) (@4.5V LL) max
    14.6 mΩ
  • Rth
    1.5 K/W
  • VDS max
    30 V
  • VGS(th)
    1.2 V to 2 V
OPN
Product Status
Infineon Package
Package Name
Packing Size
Packing Type
Moisture Level
Moisture Packing
Lead-free
Halogen Free
RoHS Compliant
Infineon stock last updated:
Ultra low gate and output charge, together with lowest on-state resistance in small footprint packages, make OptiMOS™ 25V the best choice for the demanding requirements of voltage regulator solutions in servers, datacom and telecom applications. OptiMOS™ 30V products are tailored to the needs of power management in notebook by improved EMI behavior, as well as increased battery life. Available in halfbridge configuration (power stage 5x6)

Features

  • Ultra low gate and output charge
  • Lowest on-state resistance in small footprint packages
  • Easy to design in

Benefits

  • Increased battery lifetime
  • Improved EMI behavior making external snubber networks obsolete
  • Saving costs
  • Saving space
  • Reducing power losses

Applications
