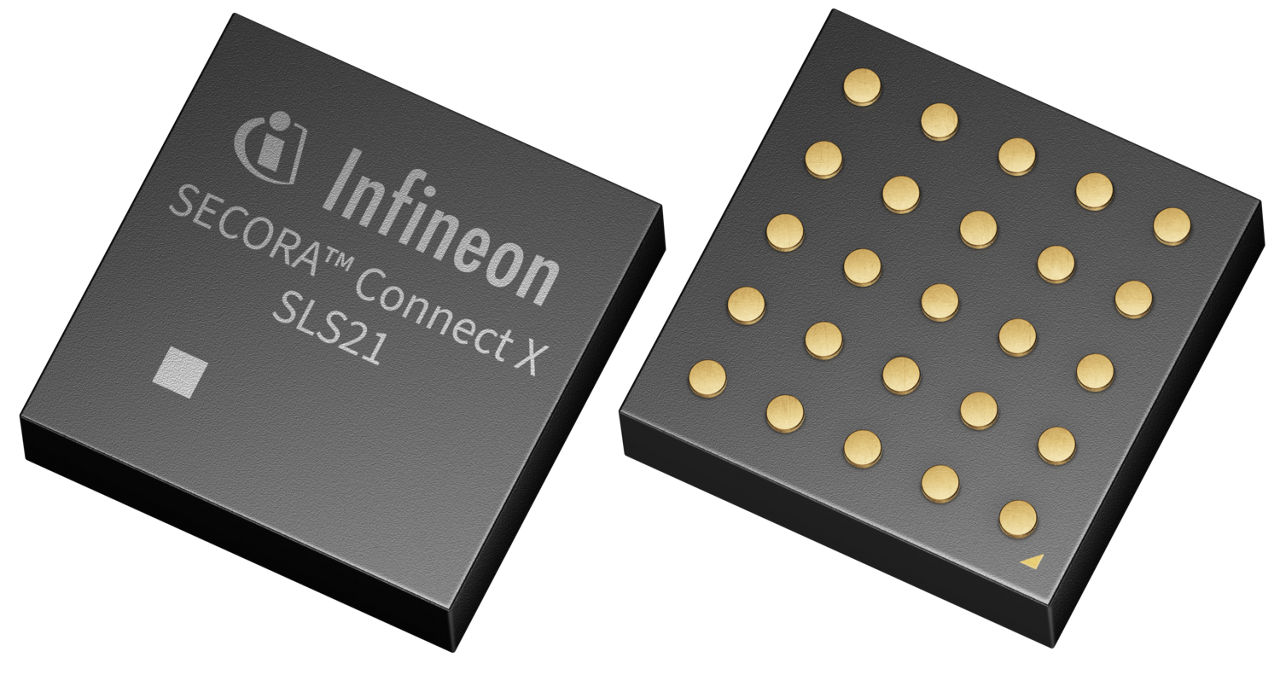

SLS21WMK1M0B0_LGA25
Active and preferred
RoHS Compliant
Lead-free

SLS21WMK1M0B0_LGA25

package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

SLS21WMK1M0B0_LGA25
SLS21WMK1M0B0_LGA25

Product details

  • Asymmetric Cryptography
    ECDSA using ECC-256 and SHA-256, RSA-1024
  • Certifications
    CC EAL6+, EMVCo platform, Visa Chip security program (composite certification), Mastercard Compliance assessment and security testing (CAST) program (composite certification), Car connectivity consortium (CCC), FIDO
  • Interfaces
    Contact based GP T=1', I2C, NFC Forum NCI, Contactless ISO 14443 Type A
  • Product Description
    SECORA™ Connect X is a Secure Element with active NFC card emulation (CE) that enables Mastercard® / Visa® contactless payments and many other NFC applications.
  • Symmetric Cryptography
    AES-128, AES-192, AES-256, 3DES
  • Use Cases
    NFC ticketing for events and transportation • Secured EMVCo or closed-loop payments • Logical access • Online payment with mobile wallet • Secured applications for Internet of Things (IoT) • Online applications • Physical access control for enterprise and residential building • Car access (for example, key-less access system)
Recommended
OPN
SLS21WMK1M0B0LGA25XUSA1
Product Status active and preferred
Infineon Package
PG-LGA-25
Package Name N/A
Packing Size 1
Packing Type TAPE & REEL
Moisture Level N/A
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
PG-LGA-25
Package Name -
Packing Size 1
Packing Type TAPE & REEL
Moisture Level -
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
SECORA™ Connect X is a Secure Element with active NFC card emulation (CE) that enables Mastercard® / Visa® contactless payments and many other NFC applications.

Features

  • Turnkey contactless NFC payment solution
  • Simplified antenna design-in
  • Pre-loaded applets for car key, NFC tag, FIDO
  • HCE pass-through mode
  • PQC safe in-field software updates
  • Operating voltage 1,8V
  • VDDRF 3,3V
  • User memory upto 1 MB
  • Standby current 2 micro Amp
  • Technology node 28 nm

Benefits

  • Ultra low power consumption
  • Ultra small LGA package
  • Best NFC performance in metal case
  • Upto 60% reduction in Bill of Material
  • Fast host integration via I2C
  • Latest 28nm Secure Element with RRAM
  • Wearable can meet RED requirements
