SLI 97CSINFX1M00PE
SLI 97CSINFX1M00PE

Product details

  • Ambient Temperature
    -40 °C to 105 °C
  • Applications
    automotive eSIM, eCall, V2X
  • Asymmetric Cryptography
    RSA up to 4096-bit, ECC up to 521-bit
  • Certifications
    CC EAL5+ high
  • CPU
    32-bit

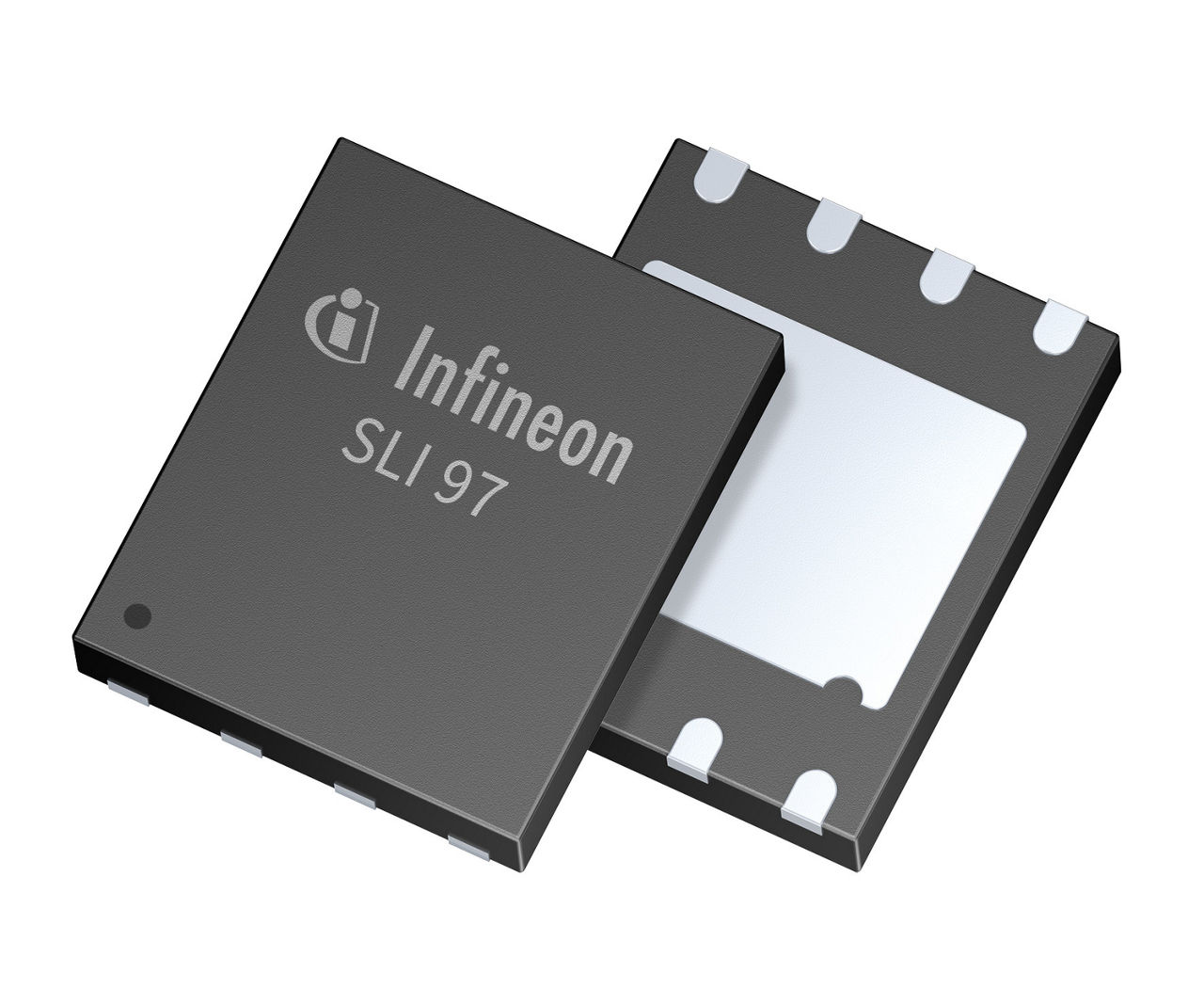

  • Delivery Forms
    MFF2 (VQFN-8-4)
  • Interfaces
    SWP, SPI, ISO 7816, I2C
  • Leading Technologies
    SOLID FLASH™
  • NVM / 凌捷掩膜
    1 MByte
  • Package
    MFF2
  • Product Description
    security cryptocontroller,, optimized for automotive applications
  • RAM
    32 kByte
  • Symmetric Cryptography
    DES, 3DES, AES up to 256-bit
OPN
Product Status
Infineon Package
Package Name
Packing Size
Packing Type
Moisture Level
Moisture Packing
Lead-free
Halogen Free
RoHS Compliant
Infineon stock last updated:
Security for high-end automotive applicationsThe SLI 97 provides a set of hardware crypto-coprocessors supporting all relevant crypto schemes and supports Common Criteria EAL 5+ High certification. It is thus the perfect solution for secured car connectivity.

Features

  • 32-bit ARM® SecurCore® SC300™ processor, enhanced with Infineon’s cache and security technologies
  • Up to 1 MB SOLID FLASH™
  • Very high endurance NVM (500K)
  • Symmetric and asymmetric crypto-processors
  • ISO 7816, SWP, USB, I2C, SPI interfaces
  • CC EAL 5+ high
