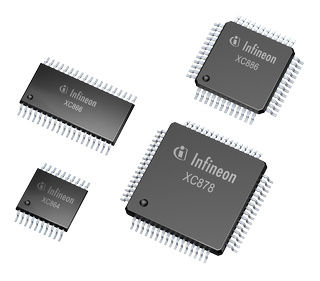

SAF-XC822T-0FRI AA

Data Sheet
board

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

SAF-XC822T-0FRI AA
SAF-XC822T-0FRI AA
Data Sheet

Product details

  • A/D Input Lines (incl. FADC)
    4
  • Additional Features
    Industrial
  • Budgetary Price €/1k
    0.63
  • CAN Nodes
    0
  • Digital I/O Pins
    0
  • DMA Channels
    0
  • DSP Functionality
    yes
  • EEPROM Emulation (Data-Flash)
    yes
  • External Bus Interface
    no
  • Fast Flash Programming
    no
  • Floating Point Unit
    no
  • I/O Operation Voltages
    5 V, 3.3 V
  • Instruction Width ([bits])
    8
  • Number of ADC Modules
    1
  • On-chip Clock Generation
    yes
  • On-chip Voltage Regulator
    yes
  • Oscillator Watchdog
    yes
  • Power Mode
    4
  • Program Memory
    2 kByte
  • Qualification
    Industrial
  • Real Time Clock
    yes
  • Serial I/O Interfaces
    3
  • SRAM (incl. Cache)
    0.5 kByte
  • Temperature
    -40 to 85°C
  • Timed I/O Pins (PWM, CAPCOM)
    4
  • Timer/Counter
    0
  • Touch/LED Matrix Control
    yes
  • Type of Memory
    Flash
  • Type of Serial I/O Interfaces
    UART, SPI, I²C
  • Watchdog Timer
    yes
OPN
Product Status
Infineon Package
Package Name
Packing Size
Packing Type
Moisture Level
Moisture Packing
Lead-free
Halogen Free
RoHS Compliant
Infineon stock last updated:
Communication interfaces and fast control loops with multichannel 10-bit ADCs and PWM signal generation are featured as well as safety and low power modes. The MDU co-processor boosts up standard 8-bit processing performance.

Features

  • Package: PG-TSSOP-16
  • CAN Nodes: 0
  • Program Memory: 2.0 KByte
  • FlexRay™: no
  • Type of Serial I/O Interfaces: 1xUART, 1SSC, I2C

Applications
