RIC70115G
NEW
Active and preferred

RIC70115G

NEW
Non-isolated high or low side GaN HEMT driver
Datasheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

RIC70115G
RIC70115G
Datasheet


Product details

  • Bias Supply Voltage range
    4.75 V to 13.2 V
  • Channels
    1
  • Configuration
    High-side and low-side
  • Operating Temperature range
    -55 °C to 125 °C

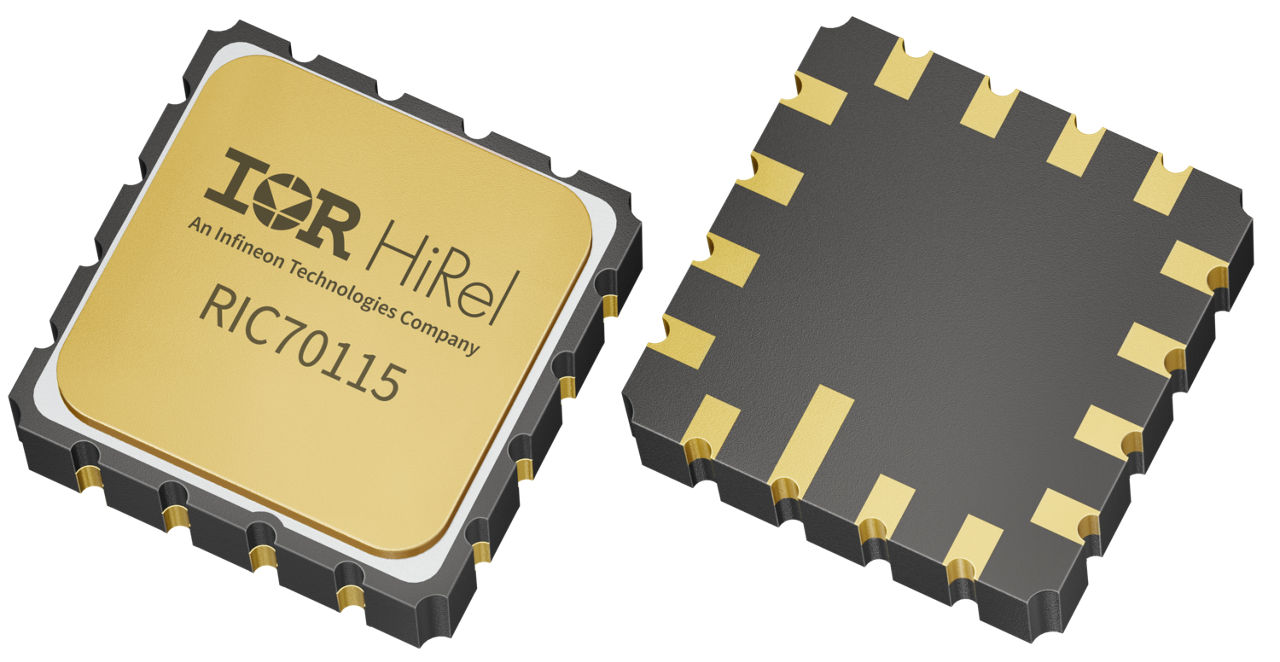

  • Package
    LCC-16
  • Product Category
    Gate Driver
  • Qualification
    COTS (EM)
  • SEE
    81.9
  • TID max
    100 Krad(Si)

Recommended
OPN
Product Status active and preferred
Infineon Package C-LCC-16
Package Name LCC-16
Packing Size N/A
Packing Type N/A
Moisture Level N/A
Moisture Packing N/A
Lead-free No
Halogen Free Yes
RoHS Compliant No

Product Status
Active
Infineon Package C-LCC-16
Package Name LCC-16
Packing Size 0
Packing Type
Moisture Level -
Moisture Packing
Lead Free
Halogen Free
RoHS Compliant
RIC70115 is a single channel gate driver that can work in low or high side applications. It has a logic level output, which makes it well suited to drive GaN Schottky gate (SG) HEMT or logic level Si FETs like the rad hard R8 FET family. RIC70115 will be certified for use in space applications per Defense Logistics Agency (DLA) MIL-PRF-38535 Class V.

Features

  • Truly differential input (TDI) circuitry
  • Wide supply range of 4.75 V to 15 V
  • Regulated 4.8 V drive voltage
  • Source/sink 1.5 A / 2.5 A drive current
  • Low 2.9 ns matching propagation delay
  • MIL-PRF-38535 QMLV qualified
  • Short propagation delay
  • Integrated miller clamp
