Please note that this is an end of life product. See newer alternative product version Please note that this is an end of life product. See newer alternative product version
END OF LIFE
discontinued
RoHS Compliant

PASCO2V15

END OF LIFE
XENSIV™ PAS CO2 5V gas sensor
Data Sheet
package
board

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

PASCO2V15
PASCO2V15
Data Sheet

Product details

  • Accuracy
    ±50 ppm ±5% (400 to 3000 ppm)
  • Family
    XENSIV™ CO2 sensors
  • Interfaces
    I2C, UART and PWM
  • Measurement Range
    0 ppm to 32000 ppm
  • Qualification
    Industrial (JEDEC20/22)
  • Response Time
    55 s
  • Supply Voltage
    3.3 V to 5 V
  • Temperature Range
    0 to +50°C
OPN
PASCO2V15AUMA1
Product Status discontinued
Infineon Package
LG-MLGA-14
Package Name N/A
Packing Size 300
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free No
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status discontinued
Infineon Package
LG-MLGA-14
Package Name -
Packing Size 300
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant

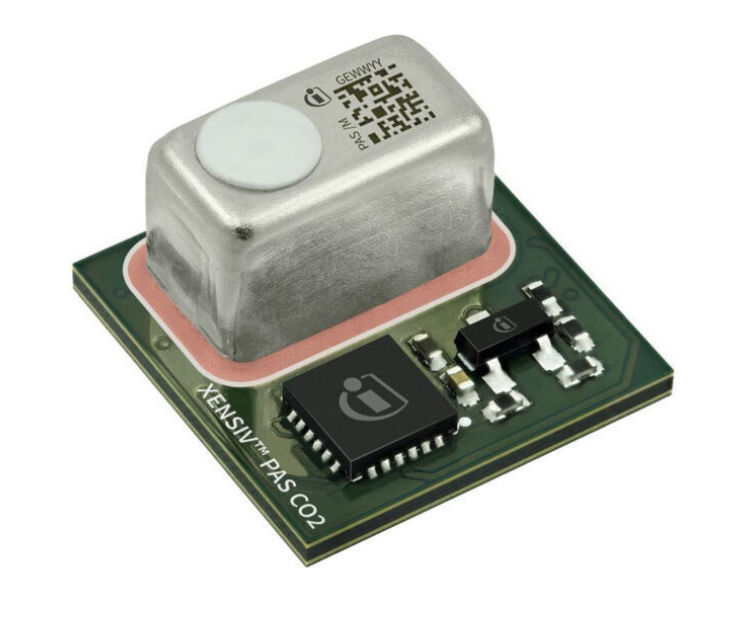

The XENSIV™ PASCO2V15 gas sensor is a 5V, real carbon dioxide (CO2) sensor based on photoacoustic spectroscopy (PAS) technology. The sensor comes in an unprecedentedly small form factor and provides accurate CO2 data outputs in direct ppm readings. Its direct ppm readings, Tape and Reel packing, SMD capability, and simple design allow for quicker and easier integration into customers' systems in both low- and high-volume applications. The compact design facilitates seamless integration and smooth high-volume assembly, while its robust performance enables the sensor to fulfill the requirements of the WELL™ building standard and other demanding applications.

Features

  • Small form factor (14 x 13.8 x 7.5 mm³)
  • 5V power supply (IR emitter)
  • SMD package delivered in tape and reel
  • ±50 ppm ±5% between 400 and 3000 ppm
  • Advanced compensation algorithms
  • Self-calibration algorithms
  • UART, I²C, PWM interfaces
  • Dust-proof design (ISO 20653:2013-02)

Benefits

  • Space saving for easy integration
  • Smooth high-volume assembly
  • High-quality data
  • Maintenance-free for user convenience
  • Long-term stability
  • Robustness and durability
  • Fullfilment of WELLTM requirements

Diagrams

PASCO2V15
PASCO2V15
PASCO2V15 PASCO2V15 PASCO2V15
×
