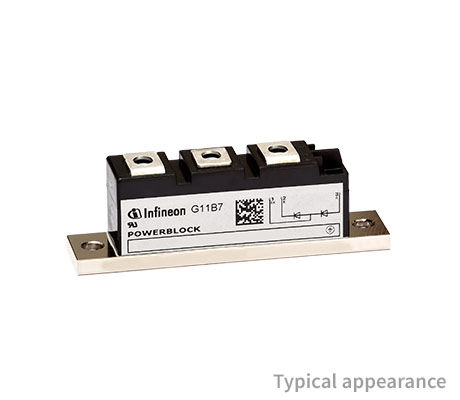

ND89N16K

20 mm Single Rectifier Diode Module with 1600 V in pressure contact technology
Data Sheet
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

ND89N16K
ND89N16K
ea.
Data Sheet

Product details

  • Configuration
    Single Rectifier Diode
  • Housing
    20 mm
  • IFAVM/TC / ITAVM/TC [A/°C] (@180° el sin)
    89/100
  • IFSM / ITSM [A] (@10ms, Tvj max)
    2400
  • Product Line
    Power Block
  • rT [mΩ] (@Tvj max)
    2.3
  • RthJC [K/W] (@180° el sin)
    0.45
  • Tvj [°C]
    150
  • VDRM / VRRM [V]
    1600
  • VT0 [V] (@Tvj max)
    0.75
  • ∫I2dt [A²s · 103] (@10ms, Tvj max)
    28.8
Recommended
OPN
ND89N16KHPSA1
Product Status active and preferred
Infineon Package BG-PB20-1
Package Name N/A
Packing Size 15
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free Yes
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package BG-PB20-1
Package Name -
Packing Size 15
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
Single Rectifier Diode 20 mm Power Block 1600 V, 89 A module for phase control in pressure contact technology using an isolated copper base plate.

Features

  • Pressure contact technology
  • Industrial standard package
  • Electrically insulated baseplate
  • Short on fail
  • Highest robustness and reliability

Applications
