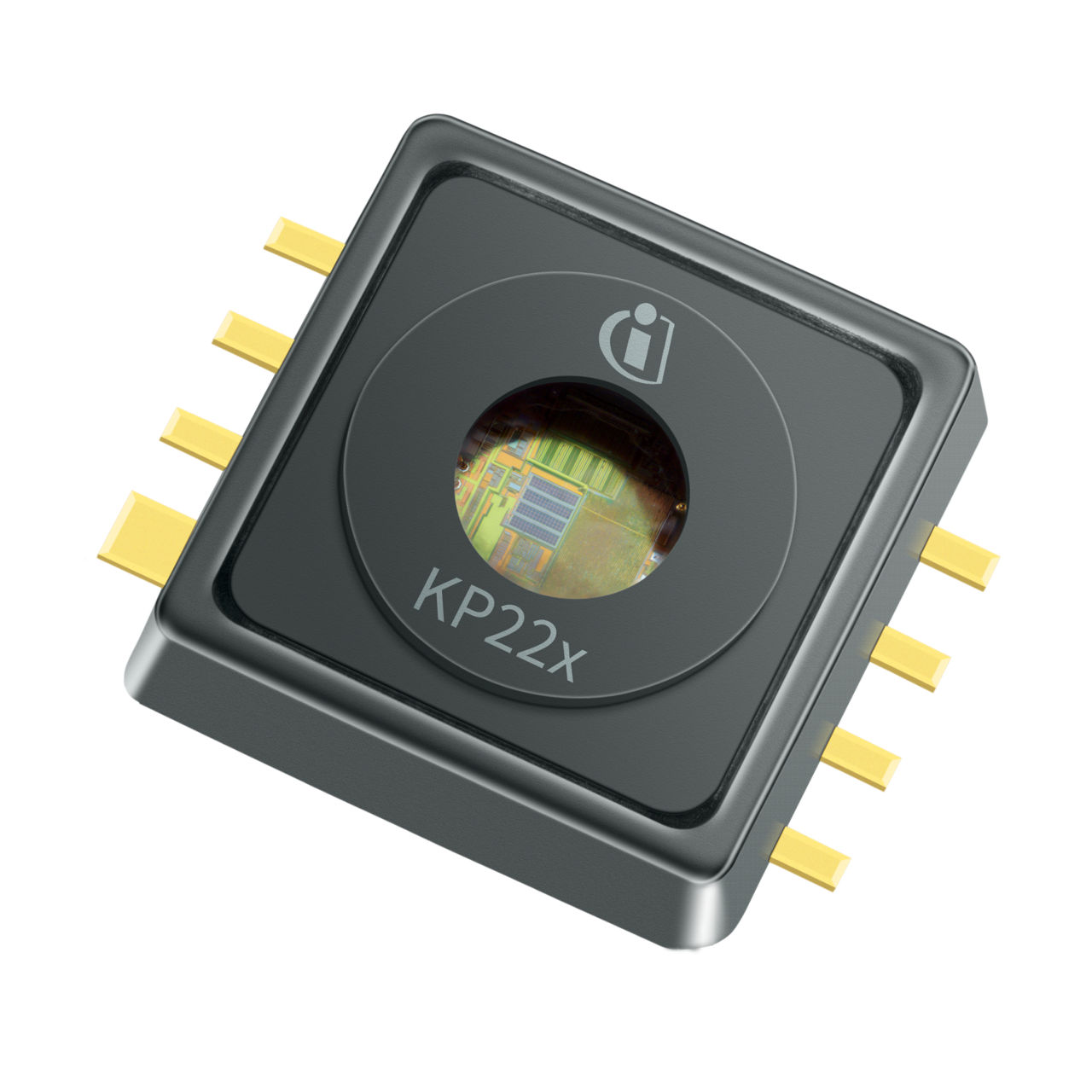

KP229E3201

XENSIV™ compact analog MAP sensor offering high accuracy pressure sensing.
Data Sheet
package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

KP229E3201
KP229E3201
Data Sheet

Product details

  • Accuracy
    ±3.4 kPa
  • Interfaces
    Analog
  • Pressure Range range
    10 kPa to 250 kPa
  • Supply Voltage range
    4.4 V to 5.5 V
  • Supply Voltage
    5 V
  • Temperature range
    -40 °C to 140 °C
Recommended
OPN
KP229E3201XTMA1
Product Status active and preferred
Infineon Package
PG-DSOF-8
Package Name N/A
Packing Size 1500
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
PG-DSOF-8
Package Name -
Packing Size 1500
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
The KP229E3201 is a compact analog manifold air pressure (MAP) sensor with surface micromachining and a BiCMOS-integrated signal conditioning circuit. It converts 10 kPa to 250 kPa pressure into a 0.40 V to 4.65 V voltage range. Encased in a "green" SMD package, it delivers high accuracy and sensitivity, making it well-suited for manifold air pressure detection in automotive, industrial, and consumer applications.

Features

  • High precision pressure sensing
  • Ratiometric analog output
  • Large temperature range
  • Broken wire detection
  • Eco-friendly 8 pin SMD housing
  • Automotive qualified

Benefits

  • Wide pressure range suits MAP
  • Analog output simplifies ECU integration
  • AEC-Q100 ensures automotive reliability
  • EEPROM calibration improves consistency

Applications
