JANSG2N7697UFHC

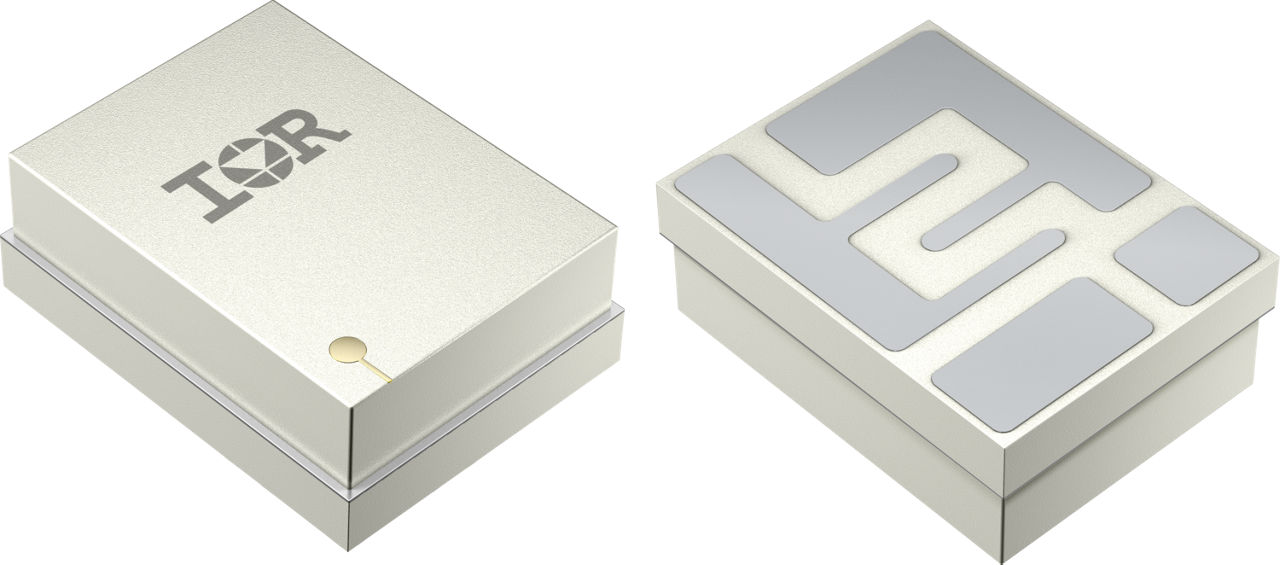

Rad hard, 100 V, 52 A, GaN transistor in PowIR-SMD package – PowIR-SMD, 500 krad TID, JANS
Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

JANSG2N7697UFHC
JANSG2N7697UFHC
Data Sheet

Product details

  • ESD Class
    Class 1C
  • Generation
    Gen 1
  • ID (@25°C) max
    52 A
  • Optional TID Rating (kRad(si))
    500
  • Package
    PowIR-SMD
  • Polarity
    N
  • QG
    13 nC
  • QPL Part Number
    2N7697
  • Qualification
    JANS
  • RDS (on) (@25°C) max
    6 mΩ
  • TID max
    500 Krad(Si)
  • VBRDSS
    100 V
  • VF
    3.9 V
OPN
Product Status coming soon
Infineon Package C-CCN-4
Package Name PowIR-SMD
Packing Size N/A
Packing Type N/A
Moisture Level N/A
Moisture Packing N/A
Lead-free No
Halogen Free Yes
RoHS Compliant No
Infineon stock last updated:

Product Status coming soon
Infineon Package C-CCN-4
Package Name PowIR-SMD
Packing Size 0
Packing Type
Moisture Level -
Moisture Packing
Lead Free
Halogen Free
RoHS Compliant
With low RDS(on), low gate charge, and zero reverse recovery charge, IR HiRel's DLA-qualfied, rad hard GaN device JANSG2N7697UFHC minimizes power losses in DC-DC converters and motor control. Tested for TID and SEE, it supports high-frequency power management, enabling high power density and reduced payload mass.

Features

  • SEE hardened up to LET = 70 MeV.cm2/mg
  • Ultra low RDS(on)
  • Low total gate charge
  • Zero reverse recovery charge
  • Hermetically sealed ceramic package
  • Surface mount
  • Light weight
  • ESD rating: class 1C
