ITS4060S-SJ-N

Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

ITS4060S-SJ-N
ITS4060S-SJ-N
ea.
Data Sheet

Product details

  • Budgetary Price €/1k
    0.65
  • Channels
    1
  • Current Limit min
    2.6 A
  • Diagnostics
    n.a.
  • Family
    Classic PROFET™ Industrial
  • IL (Short Circuit Current)
    17 A
  • Load Current
    3.1 A
  • Mounting
    SMT
  • Nominal Load Current per channel (All channels active)
    3.1 A
  • Operating Temperature
    -40 °C to 125 °C
  • Planned to be available until at least
    2033
  • Ptot max
    1.5 W
  • Qualification
    Industrial
  • RDS (on) (@ Tj max) max
    120 mΩ
  • RDS (on) (@ Tj = 25°C)
    50 mΩ
  • Recommended Operating Voltage
    5 V to 34 V
  • toff (Turn OFF time) max
    230 µs
  • ton (Turn ON time) max
    180 µs
Recommended
OPN
ITS4060SSJNXUMA1
Product Status active
Infineon Package
PG-DSO-8
Package Name SO-8
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-DSO-8
Package Name SO-8
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
High side power switch with integrated vertical power FET, providing embedded protection and diagnostic functions.

Features

  • Overload protection
  • Current limitation
  • Short circuit protection
  • Thermal shutdown with restart
  • Overvoltage protection (incl load dump)
  • Fast demagnetization of inductive loads
  • Rev battery protection w/ ext resistor
  • CMOS compatible input
  • ESD- Protection
  • Very low stand by current
  • Green product (RoHS compliant)

Benefits

  • O/P Voltage Clamped with Inductive Loads
  • Very low standby current
  • Thermal shutdown with restart
  • ESD-Protection

Applications

Diagrams

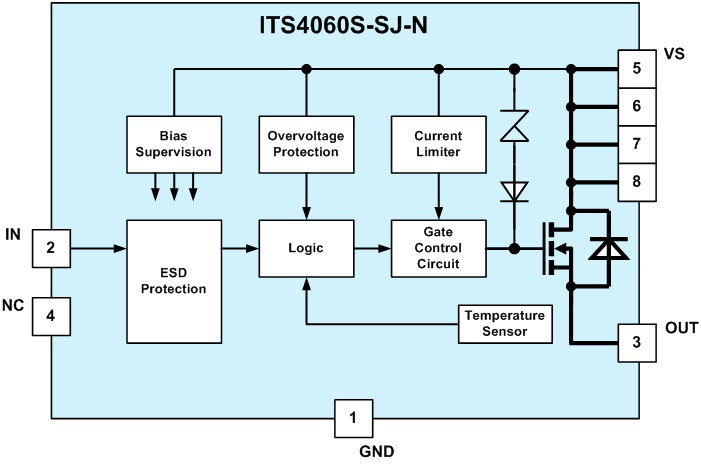

Blockdiagram_ITS4060S-SJ-N
Blockdiagram_ITS4060S-SJ-N
Blockdiagram_ITS4060S-SJ-N Blockdiagram_ITS4060S-SJ-N Blockdiagram_ITS4060S-SJ-N
MiniPROFET-Industrial- MiniPROFET-Industrial- MiniPROFET-Industrial-
×
