Please note that this is an end of life product. See newer alternative product version Please note that this is an end of life product. See newer alternative product version
END OF LIFE
discontinued
RoHS Compliant

ISZ0803NLS

END OF LIFE
OptiMOS™ low-voltage power MOSFET - perfectly addressing the needs of charger and adapter designs
Data Sheet
package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

ISZ0803NLS
ISZ0803NLS
Data Sheet

Product details

  • Budgetary Price €/1k
    0.36
  • ID (@25°C) max
    37 A
  • Operating Temperature
    -55 °C to 150 °C

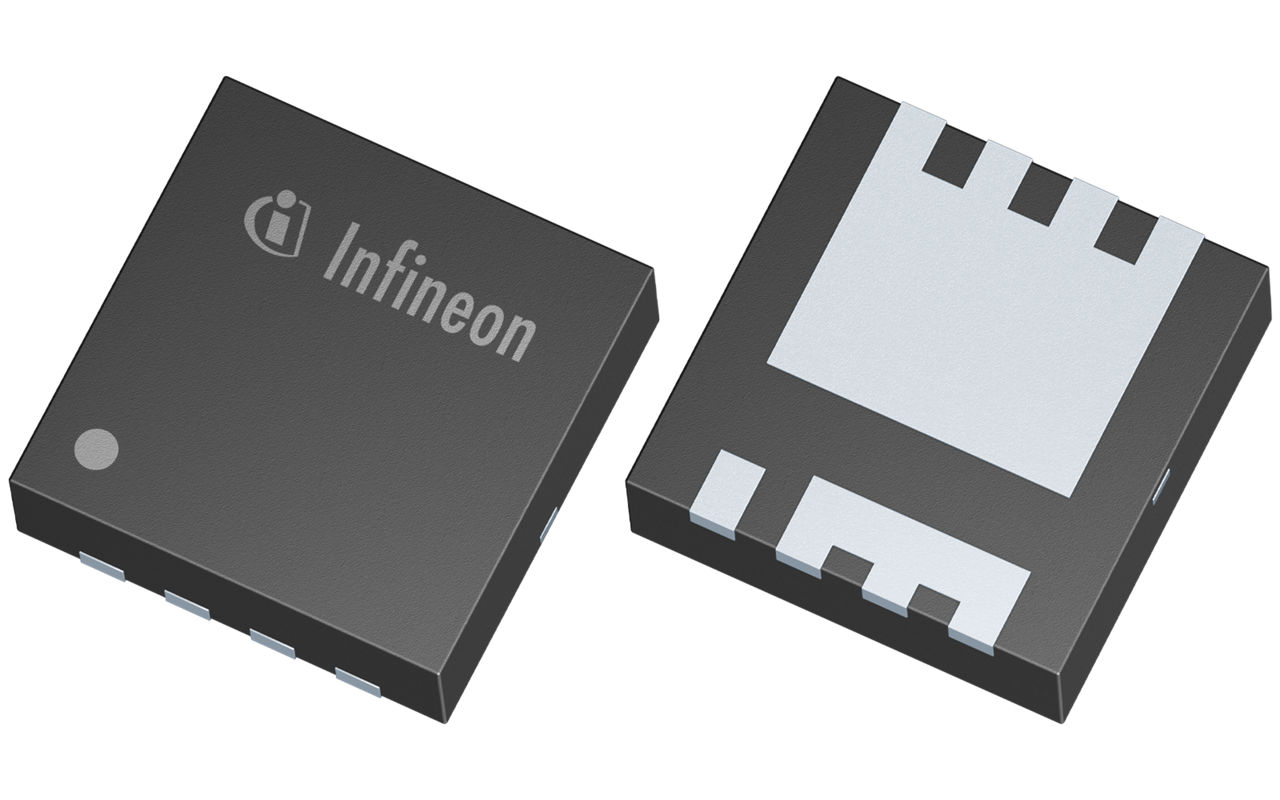

  • Package
    PQFN 3.3 x 3.3 Fused Lead
  • Polarity
    N
  • QG (typ @4.5V)
    6 nC
  • QG (typ @10V)
    11 nC
  • RDS (on) (@10V) max
    16.9 mΩ
  • RDS (on) (@4.5V) max
    21.9 mΩ
  • VDS max
    100 V
  • VGS(th)
    1.6 V
OPN
ISZ0803NLSATMA1
Product Status discontinued
Infineon Package
PG-TSDSON-8
Package Name PQFN 3.3 x 3.3
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status discontinued
Infineon Package
PG-TSDSON-8
Package Name PQFN 3.3 x 3.3
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
OptiMOS™ PD power MOSFET is Infineon’s portfolio targeting USB-PD and adapter applications . ISZ0803NLS in the PQFN 3.3x3.3 package offers fast ramp-up and optimized lead times. OptiMOS™ low-voltage MOSFETs for power delivery enable designs with less parts leading to BOM cost reduction. OptiMOS™ PD features quality products in compact, lightweight packages.

Features

  • Logic level availability
  • Low on-state resistance RDS(on)
  • Low gate, output and reverse recovery charge
  • Excellent thermal behavior
  • Available in 2 small standard packages

Benefits

  • Short lead times
  • Quick quote response
  • Highest efficiency and power density designs
  • Compact, lightweight and environmentally friendly products
  • Excellent price-performance ratio

Applications
