ISK036N03LM5

OptiMOS™ 5 power MOSFET 30 V, 3.6 mΩ, smallest form factor in PQFN 2x2 package
Data Sheet

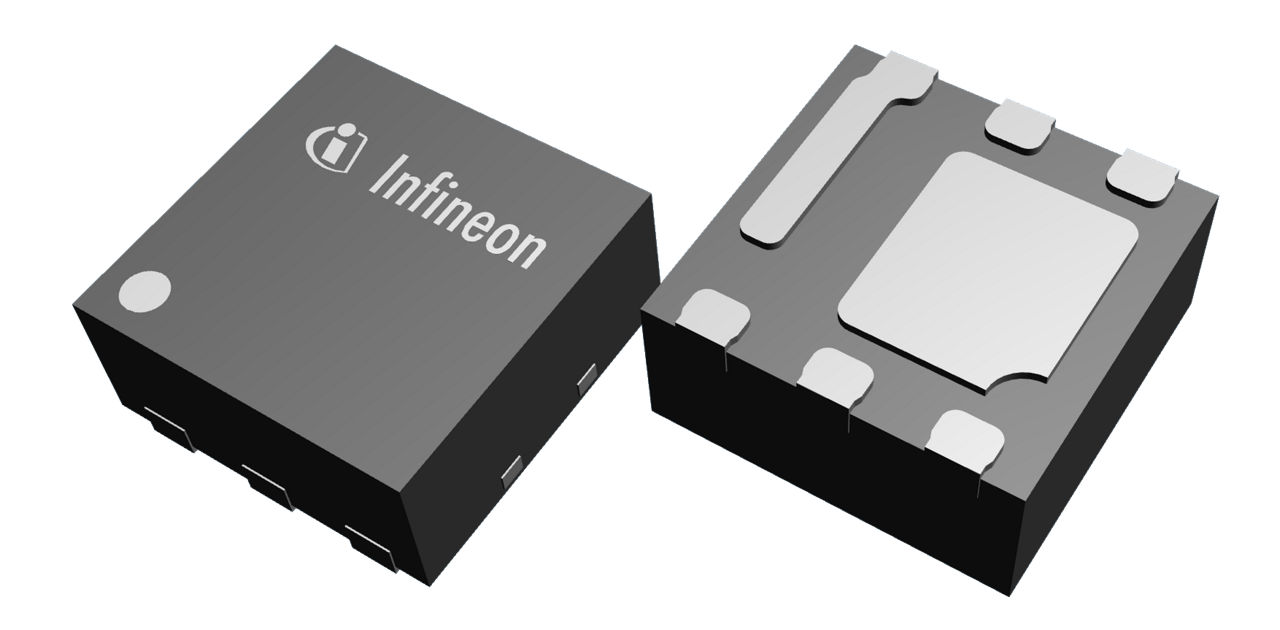

package
Multiple OPNs available
ea.

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

ISK036N03LM5
ISK036N03LM5
ea.
Data Sheet

Product details

  • Budgetary Price €/1k
    0.23
  • ID max
    44 A
  • ID (@25°C) max
    44 A
  • IDpuls max
    174 A
  • Operating Temperature
    -55 °C to 150 °C
  • Package
    PQFN 2 x 2 (DFN2020)
  • Polarity
    N
  • Ptot max
    11 W
  • QG (typ @10V)
    16.2 nC
  • QG (typ @4.5V)
    7.7 nC
  • RDS (on) (@10V) max
    3.6 mΩ
  • RDS (on) (@4.5V) max
    4.6 mΩ
  • RDS (on) max
    3.6 mΩ
  • VDS max
    30 V
  • VGS(th)
    1.6 V
Recommended
OPN
ISK036N03LM5ATSA1 ISK036N03LM5AUSA1
Product Status active and preferred discontinued
Infineon Package
PG-VSON-6
PG-VSON-6
Package Name PQFN 2 x 2 PQFN 2 x 2
Packing Size 3000 3000
Packing Type TAPE & REEL TAPE & REEL
Moisture Level 1 1
Moisture Packing NON DRY NON DRY
Lead-free No No
Halogen Free Yes Yes
RoHS Compliant Yes Yes
Infineon stock last updated:
View replacement

Product Status
Active
Infineon Package
PG-VSON-6
Package Name PQFN 2 x 2
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

Product Status discontinued
Infineon Package
PG-VSON-6
Package Name PQFN 2 x 2
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
With the new BIC OptiMOS™ 5 in 25V and 30V product family Infineon offers a Best in class solution for efficiency in a small form factor, making it the perfect solution for applications such as wireless charging, load switches and low power DCDC applications.The small 4 mm2 footprint PQFN 2x2 package , combined with outstanding electrical performance contributes towards form factor improvement in end applications, featuring low RDS(on) of 3.6 mΩ.

Features

  • Best-in-class products PQFN 2x2 package
  • Thermal resistance PQFN 2x2 package
  • Highest performance & power density
  • Lowest RDS(on) in PQFN 2x2
  • 100% Avalanche tested
  • Pb-free lead plating; RoHS compliant

Benefits

  • Optimized low voltage overshoots
  • Reduced system costs
  • Enables significant space saving
  • Compact PCB design
  • Small footprint for easy design
