Active and preferred
RoHS Compliant

ISCH54N04NM7V

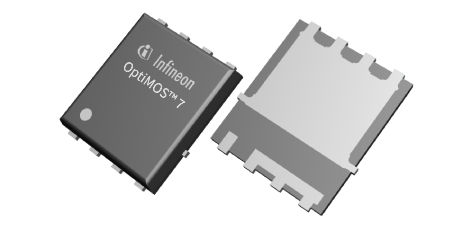

OptiMOS™ 7 40 V motor-drives optimized power MOSFETs in SuperSO8 (5x6) package. The Ultimate Motor-Drives Solution.
Data Sheet
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

ISCH54N04NM7V
ISCH54N04NM7V
ea.
Data Sheet

Product details

  • ID (@25°C) max
    458 A
  • ID max
    458 A
  • IDpuls max
    1832 A
  • Operating Temperature
    -55 °C to 175 °C
  • Package
    SuperSO8 5x6
  • Polarity
    N
  • QG
    117 nC
  • QG (typ @10V)
    117 nC
  • RDS (on) (@10V) max
    0.54 mΩ
  • Special Features
    Motor-drives optimized
  • VDS max
    40 V
  • VGS(th)
    2.75 V
Recommended
OPN
ISCH54N04NM7VATMA1
Product Status active and preferred
Infineon Package PG-TDSON-8
Package Name SuperSO8 FL
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free No
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package PG-TDSON-8
Package Name SuperSO8 FL
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The OptiMOS™ 7 40 V motor-drives optimized offers up to 3x wider Safe Operating Area vs. OptiMOS™ 6, providing highest reliability. An increased threshold voltage of 3.2 V offers enhanced induced turn-on ruggedness. 70% lower transconductance enables ease of use by improving current sharing, reducing voltage overshoot and an inherent short circuit current limitation characteristic boosting performance while handling harsh operation conditions.

Features

  • Best-in-class RDS(on)
  • Up to 3x wider SOA
  • Short-circuit current limitation
  • Higher threshold voltage Vth up to 3.2 V
  • Controlled Transconductance gfs
  • >

Benefits

  • Enhanced efficiency
  • Superior performance
  • Improved robustness in harsh conditions
  • Improved pulse current handling
  • Immunity vs. short-circuit events
  • Immunity vs. parasitic turn-on events
  • Intrinsic short current limitation
  • Improved slew rate control
  • Better EMI behavior and ease of use
