Active and preferred
RoHS Compliant

ISC750P10LM

P-channel MOSFETs in logic level, reducing design complexity in medium and low power applications
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

ISC750P10LM
ISC750P10LM
ea.
Data Sheet

Product details

  • ID (@25°C) max
    -32 A
  • IDpuls max
    -129 A
  • Operating Temperature
    -55 °C to 175 °C

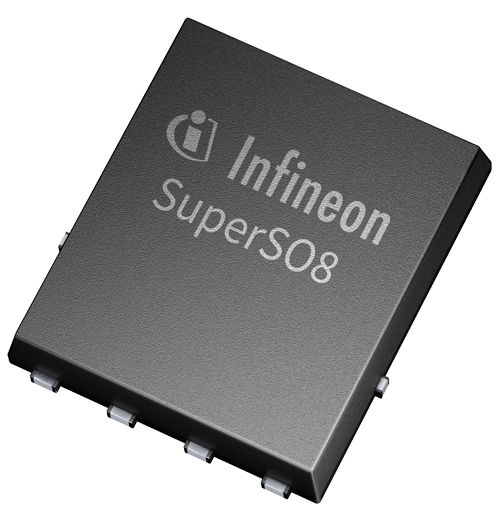

  • Package
    SuperSO8 5x6
  • Polarity
    P
  • Ptot max
    188 W
  • QG (typ @10V)
    -92 nC
  • QG (typ @4.5V)
    -46 nC
  • RDS (on) (@10V) max
    75 mΩ
  • RDS (on) (@4.5V) max
    86 mΩ
  • VDS max
    -100 V
  • VGS(th)
    -1 V to -2 V
Recommended
OPN
ISC750P10LMATMA1
Product Status active and preferred
Infineon Package
PG-TDSON-8
Package Name SuperSO8
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free No
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-TDSON-8
Package Name SuperSO8
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
OptiMOS™ P-channel MOSFET 100 V, SuperSO8 package, targeting battery management, load switch and reverse polarity protection applications, reducing design complexity in medium and low power applications. Features easy interface to MCU, fast switching as well as avalanche ruggedness makes it suitable for high quality demanding applications. Available in logic level with a wide RDS(on) range, improves efficiency at low loads.

Features

  • Available in 6 different packages
  • Wide RDS(on)range
  • Normal level & logic level availability
  • Optimized for a wide range applications
  • Availability from distribution partners

Benefits

  • Industry standard package
  • Ideal for high & low switching frequency
  • Avalanche ruggedness
  • Easy interface to MCU
  • Efficient at low loads,low Qf
  • Reduced design complexity
  • Energy efficiency

Applications
