Active and preferred
RoHS Compliant

ISC037N12NM6

OptiMOS™ 6 power MOSFET normal level 120 V in SuperSO8 package
Data Sheet
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

ISC037N12NM6
ISC037N12NM6
ea.
Data Sheet

Product details

  • Battery voltage
    48-72 V
  • Budgetary Price €/1k
    1.35
  • ID (@25°C) max
    163 A
  • IDpuls max
    652 A
  • Operating Temperature
    -55 °C to 175 °C
  • Package
    SuperSO8 5x6 FL
  • Polarity
    N
  • Ptot max
    214 W
  • QG (typ @10V)
    46 nC
  • RDS (on) (@10V) max
    3.7 mΩ
  • Special Features
    Fused leads
  • VDS max
    120 V
  • VGS(th)
    3.1 V
Recommended
OPN
ISC037N12NM6ATMA1
Product Status active and preferred

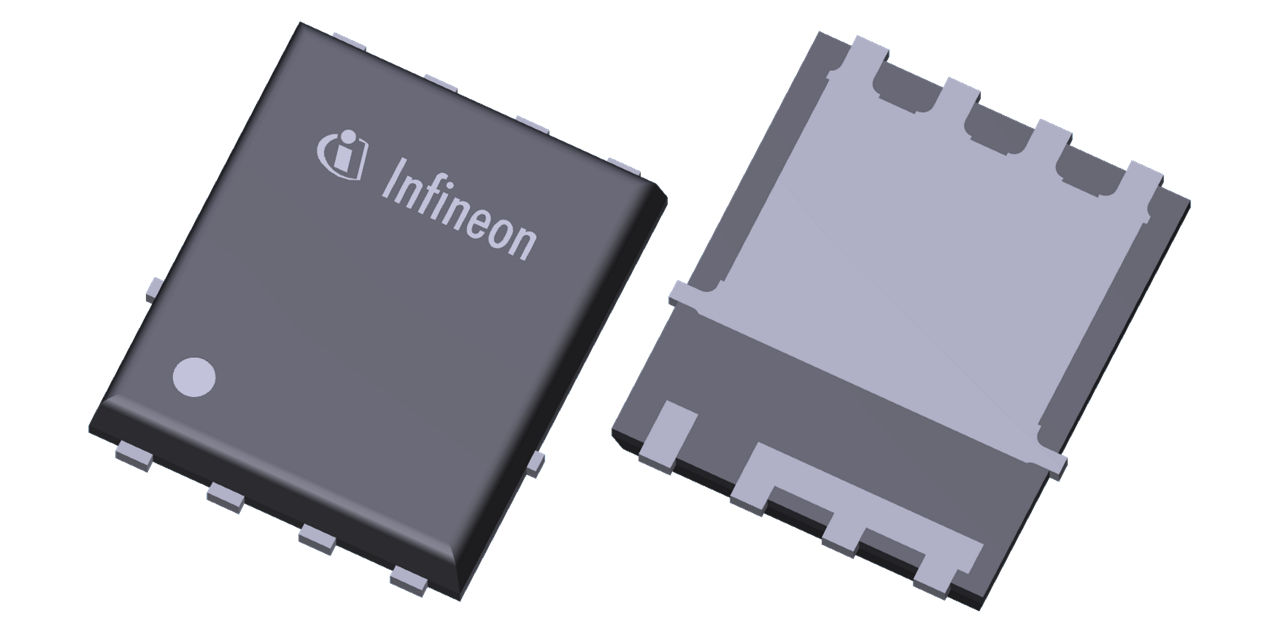

Infineon Package PG-TDSON-8
Package Name SuperSO8 5x6
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free No
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package PG-TDSON-8
Package Name SuperSO8 5x6
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
This is a normal level 120 V MOSFET in SuperSO8 packaging with 3.7 mOhm on-resistance. ISC037N12NM6 is part of Infineon’s OptiMOS™ 6 power MOSFET family .

Features

  • Features: 58% better RDS(on)
  • up to 66% better FOMg
  • Up to 90% better Qrr
  • Up to 35% better FOMoss

Benefits

  • Very low on-resistance
  • Very low reverse recovery charge
  • Excellent gate charge x RDS(on)
  • High avalanche energy rating
  • 175°C junction temperature rating
  • Pb-free plating
  • RoHS compliant
  • Halogen-free
  • MSL1 classified

Applications
