Active and preferred
RoHS Compliant

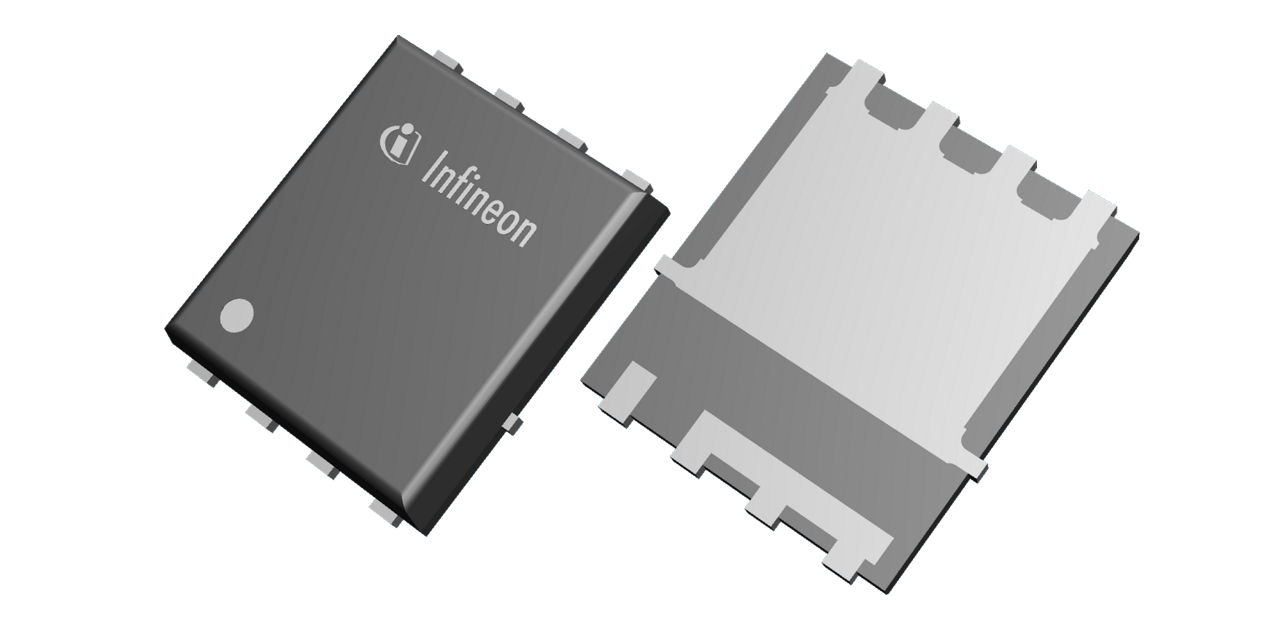

ISC025N06LM6

OptiMOS™ 6 60 V - the latest power MOSFET technology setting the new industry standard for benchmark performance.
Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

ISC025N06LM6
ISC025N06LM6
Data Sheet

Product details

  • ID (@25°C) max
    143 A
  • Operating Temperature
    -55 °C to 175 °C
  • Package
    SuperSO8 5x6 FL
  • Polarity
    N
  • QG (typ @10V)
    46 nC
  • QG (typ @4.5V)
    22 nC
  • RDS (on) (@10V) max
    2.5 mΩ
  • RDS (on) (@4.5V) max
    3.4 mΩ
  • VDS max
    60 V
  • VGS(th)
    1.7 V
Recommended
OPN
ISC025N06LM6ATMA1
Product Status active and preferred
Infineon Package PG-TDSON-8
Package Name SuperSO8 FL
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free No
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package PG-TDSON-8
Package Name SuperSO8 FL
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
Compared to its predecessor, OptiMOS™ 5, Infineon's latest wafer technology offers significant performance improvement, including >37% lower RDS(on) and ~25% improved FOMQg x RDS(on). These improvements lead to higher system efficiency and power density in soft-switching topologies and low-frequency applications.

Features

  • High performance silicon technology
  • Soft-switching optimized
  • Normal level gate drive
  • 175°C rated
  • Industrial qualification

Benefits

  • Lower conduction losses than OptiMOS™ 5
  • Lower switching losses than OptiMOS™ 5
  • Improved performance efficiency
  • Superior power handling capability
  • Robust reliable performance
