IRSM836-084MA

CIPOS™ Nano 250 V, 0.45 Ω three-phase intelligent power module
Data Sheet
Multiple OPNs available
ea.

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IRSM836-084MA
IRSM836-084MA
ea.
Data Sheet

Product details

  • Additional Information
    Electrical
  • Built in NTC
    No
  • Configuration
    3 Phase Open Source
  • Encryption
    No
  • Language
    PLECS
  • Pmot (10kHz)
    85 W
  • Product Category
    Intelligent Power Modules (IPM)
  • Product Group
    CIPOS™ Nano
  • Product Name
    IRSM836-084MA
  • Qualification
    Industrial
  • Rated Current
    7 A
  • RDS (on) (@ Tj = 25°C) max
    0.45 Ω
  • Switch Type
    MOSFET
  • Voltage Class
    250 V
Recommended
OPN
IRSM836-084MA IRSM836-084MATR
Product Status active and preferred active and preferred
Infineon Package QFN 12X12 36L QFN 12X12 36L
Package Name QFN 12x12 QFN 12x12
Packing Size 800 2000
Packing Type TRAY TAPE & REEL
Moisture Level 3 3
Moisture Packing DRY DRY
Lead-free Yes Yes
Halogen Free Yes Yes
RoHS Compliant Yes Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package QFN 12X12 36L
Package Name QFN 12x12
Packing Size 800
Packing Type TRAY
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

Product Status
Active
Infineon Package QFN 12X12 36L
Package Name QFN 12x12
Packing Size 2000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
CIPOS™ Nano 250 V, 0.45 Ω three-phase MOSFET based intelligent power module with open source in QFN 12x12 package providing fully-featured compact inverter solution with excellent thermal conduction for motor drive applications including wide range of home appliances, low power industrial drives, and etc.

Features

  • Low RDS(on) Trench FREDFETs based
  • Integrated bootstrap functionality
  • Undervoltage lockout
  • Matched prop. delay for both chan.
  • Cross-conduction prevention logic
  • 3.3 V input logic compatible
  • Active high HIN and LIN
  • M. power rating up to 85 W@10 kHz

Diagrams

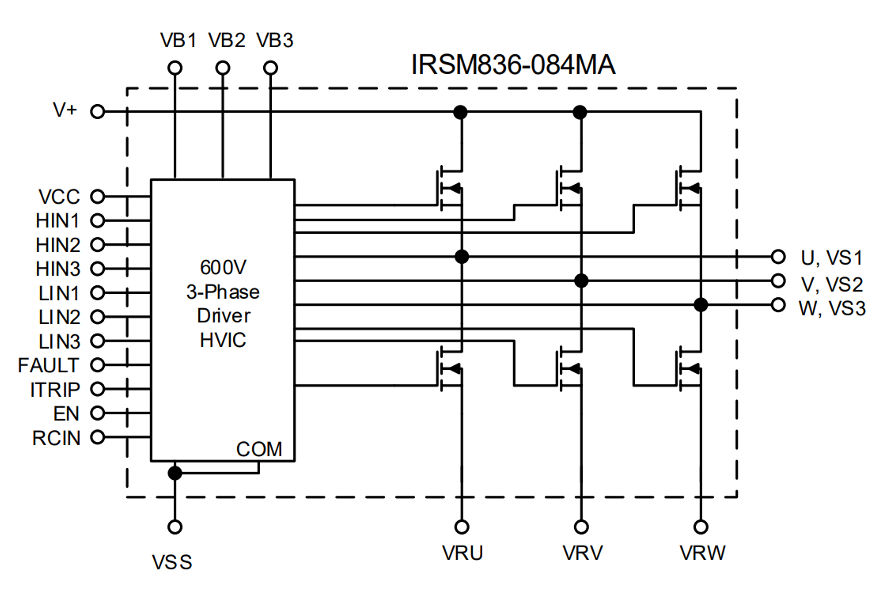

Internal_IRSM836-084MA
