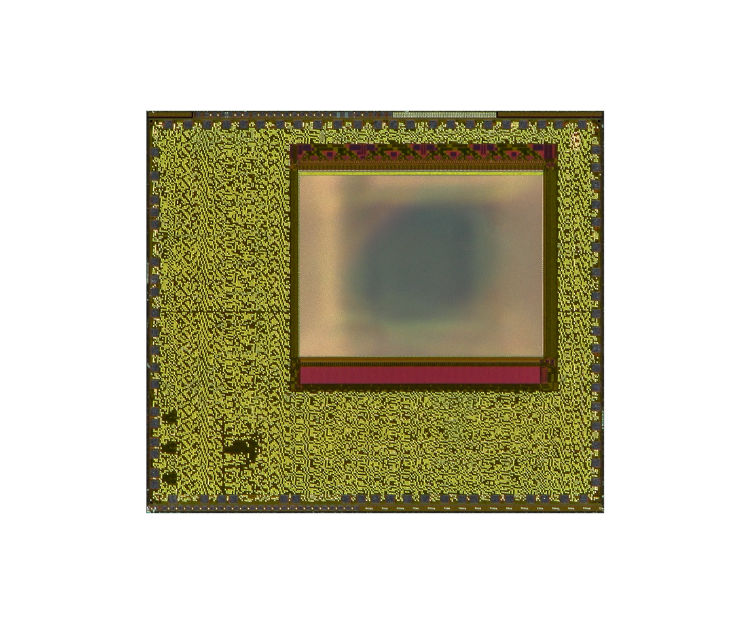

IRS2975C

REAL3™ Time-of-Flight (ToF) image sensor with HQVGA system resolution and increased sensitivity

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IRS2975C
IRS2975C

Product details

  • Ambient Temperature range
    -40 °C to 85 °C
  • Applications
    Robotics (Navigation, Obstacle avoidance), AGVs, Humanoids, Drones, Projectors (Keystone correction)
  • Classification
    Standard (JEDEC JESD22 J-STD-20)
  • Companion VCSEL driver
    IRS9102C
  • Green
    RoHS compliant, Halogen free
  • Package
    Bare die
  • Pixel amount
    240 x 180
  • Resolution (Pixel)
    43 K
  • Wavelength
    940 nm
Recommended
OPN
IRS2975CX1SA1
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type WAFER SAWN
Moisture Level NA
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type WAFER SAWN
Moisture Level NA
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
The REAL3™ IRS2975C is a 3D Time-of-Flight (ToF) image sensor tailored for the consumer and industrial markets. It features HQVGA resolution (240 x 180 pixels) with a chip size of 18 mm2, suitable for a 1/6" image circle. The imager is designed to operate on a 2.8-volt supply rail and includes full laser safety functionality to ensure safe operation. Offering high flexibility for customizing use cases and output power, the IRS2975C delivers reliable performance both indoors and outdoors.
