IRS2168DSPBF

END OF LIFE
Advanced PFC and Ballast Control IC in a 16-Lead SOIC Package
Data Sheet
package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IRS2168DSPBF
IRS2168DSPBF
Data Sheet

Product details

  • Moisture Sensitivity Level
    2
  • Output Current (Source)
    180 mA
  • Output Current (Sink)
    260 mA
  • Package
    16-lead SOIC
  • Topology
    CrCM Boost + Half-Bridge Resonant
OPN
IRS2168DSTRPBF
Product Status discontinued
Infineon Package
PG-DSO-16
Package Name N/A
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 2
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status discontinued
Infineon Package
PG-DSO-16
Package Name -
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 2
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant

Benefits

  • PFC, ballast control and 600 V half-bridge driver in one IC
  • Critical-conduction mode boost-type PFC
  • Programmable PFC over-current protection
  • Programmable half-bridge over-current protection
  • Programmable preheat frequency
  • Programmable preheat time
  • Programmable ignition ramp
  • Programmable run frequency
  • Closed-loop ignition current regulation
  • RoHs compliant
  • Fixed internal 1.6 µs HO and LO deadtime
  • Voltage-controlled oscillator (VCO)
  • End-of-life window comparator pin
  • Internal 65-event current sense up/down fault counter
  • DC bus undervoltage reset
  • Lamp removal/auto-restart shutdown pin
  • Internal bootstrap MOSFET
  • Internal 15.6 V Zener clamp diode on Vcc
  • Micropower startup (250 µA)
  • Latch immunity and ESD protection

Applications

Diagrams

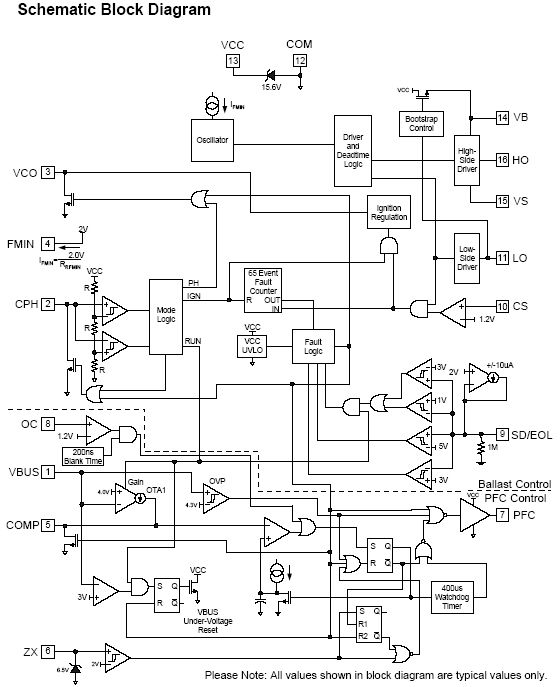

fbd-irs2168d
fbd-irs2168d
fbd-irs2168d fbd-irs2168d fbd-irs2168d

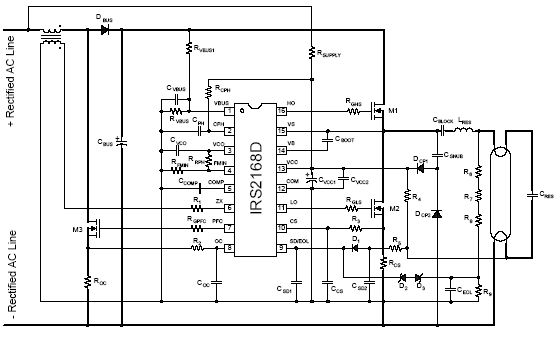

tc-irs2168d tc-irs2168d tc-irs2168d
×
