IRS2113M
Active and preferred
RoHS Compliant
Lead-free

IRS2113M

600 V high-side and low-side gate driver IC with shutdown
Datasheet
package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IRS2113M
IRS2113M
Datasheet


Product details

  • Channels
    2
  • Configuration
    High-side and low-side
  • Input Vcc range
    10 V to 20 V
  • Isolation Type
    Functional levelshift JI (Junction Isolated)
  • Output Current (Source)
    2.5 A
  • Output Current (Sink)
    2.5 A
  • Qualification
    Industrial
  • Turn Off Propagation Delay
    120 ns
  • Turn On Propagation Delay
    130 ns
  • VBS UVLO (Off)
    8.2 V
  • VBS UVLO (On)
    8.6 V
  • VCC UVLO (Off)
    8.2 V
  • VCC UVLO (On)
    8.5 V
  • Voltage Class
    600 V

Recommended
OPN
IRS2113MTRPBF
Product Status active and preferred
Infineon Package
MLPQ 4X4 14L
Package Name N/A
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 2
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Country of Assembly (CoA)
MY
Country of Diffusion (CoD)
DE,TW
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
MLPQ 4X4 14L
Package Name -
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 2
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
Country of Assembly (CoA)
MY
Country of Diffusion (CoD)
DE,TW

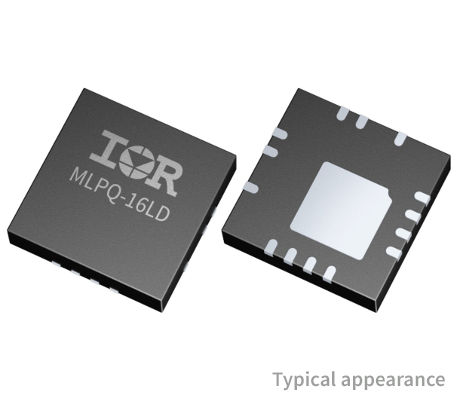

EiceDRIVER™ 600 V high and low side gate driver IC with typical 2.5 A source and 2.5 A sink currents in MLPQ 4X4 14L package for IGBTs and MOSFETs . Also available in 14 Lead PDIP and 16 Lead SOICWB.

Features

  • Floating driver for bootstrap op.
  • Fully operational to +600 V
  • Tolerant to neg. transient volt.
  • dV/dt immune
  • Gate drive supply: 10 V to 20 V
  • Undervolt. lockout for both channel
  • 3.3 V input logic compatible
  • Sep. logic supply: 3.3 V to 20 V
  • Logic & power ground +/- 5 V offset
  • CMOS Schmitt-triggered inputs
  • C-by-c edge-trigg. shutdown logic
  • Matched prop. delay for both chan.

Benefits

  • Undervoltage lockout on both channels protects the switches from insufficient gate drive
  • Cycle-by-cycle edge-triggered shutdown provides fast protection of the switches on every switching cycle
  • High- and low-side gate driver in one IC means smaller PCB area and lower BOM
