IRS20957SPBF

Protected Digital Audio Driver with Floating PWM input in a 16-Lead SOIC Narrow Package
Data Sheet
package
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IRS20957SPBF
IRS20957SPBF
ea.
Data Sheet

Product details

  • Audio Input Type
    PWM
  • Description
    Driver for 500W applications - 1 channel PWM input Class-D audio amplifier
  • Output Current (Source)
    1000 mA
  • Output Current (Sink)
    1200 mA
  • Package
    SOIC 16 pins
  • Speaker Channels
    1
  • Supply Voltage ((V))
    +/-100
  • Technology
    HVIC
  • VCC
    10 V to 15 V
Recommended
OPN
IRS20957STRPBF
Product Status active and preferred
Infineon Package
PG-DSO-16
Package Name N/A
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 2
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-DSO-16
Package Name -
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 2
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The IRS20957S is a high voltage, high speed MOSFET driver with a floating PWM input designed for Class D audio amplifier applications. The IRS2057S forms a complete Class D amplifier with dual over current, and shoot-through protection, as well as UVLO protection for the three bias supplies. The dead-time generation block enables accurate gate switching and optimum dead-time setting for lower thd+n and noise floor.

Features

  • Floating PWM input
  • Programmable OCP with self-reset
  • Programmable preset dead-time
  • High noise immunity
  • ±100V ratings deliver up to 500 W
  • 3.3 V/5 V logic compatible input
  • Operates up to 800 kHz

Applications

Diagrams

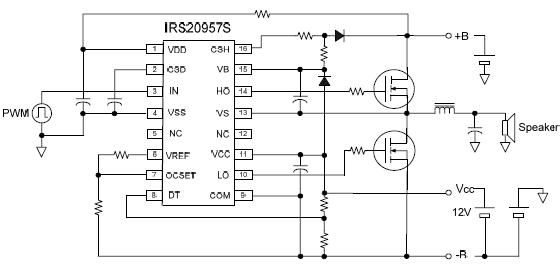

tc-irs20957s
tc-irs20957s
tc-irs20957s tc-irs20957s tc-irs20957s

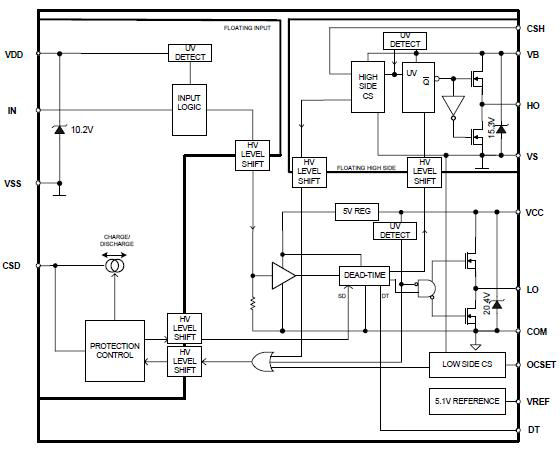

fbd-irs20957s fbd-irs20957s fbd-irs20957s
×
