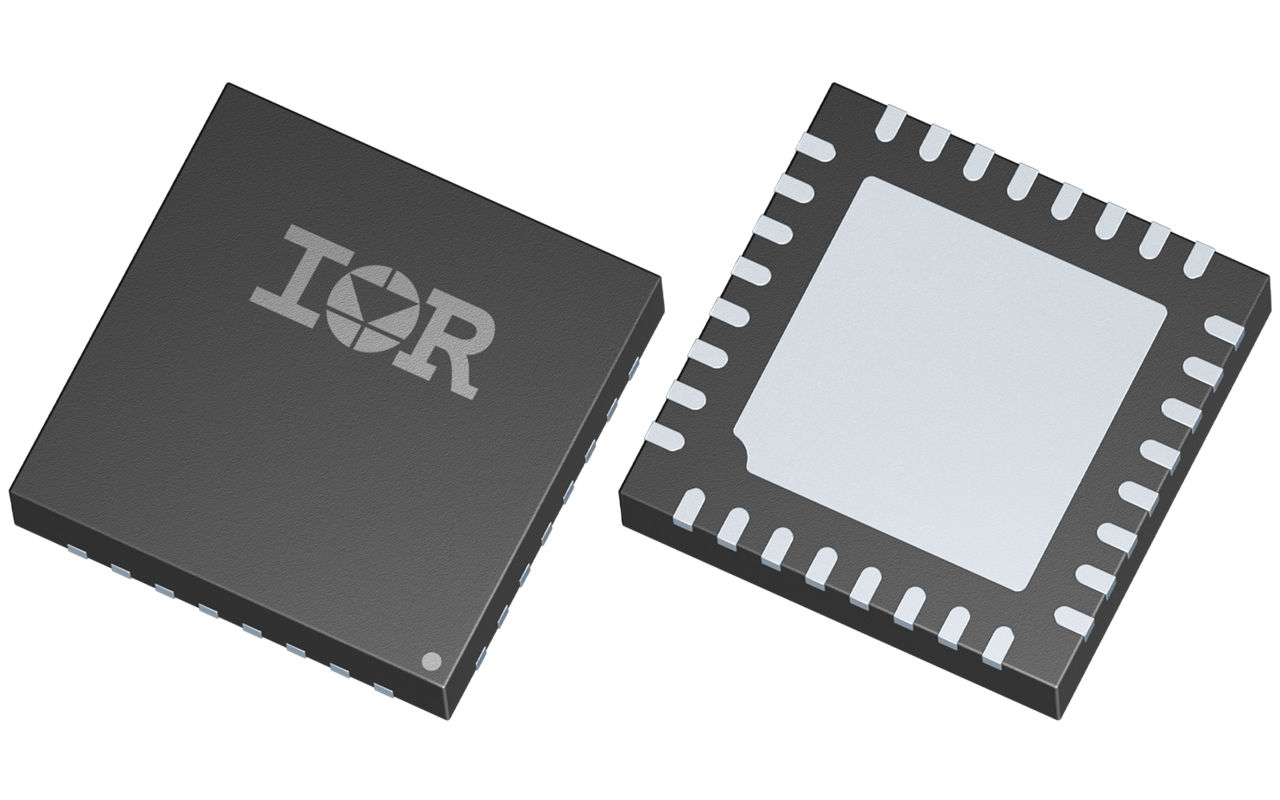

IRMCF183M

PMSM/BLDC motor controller with additional 8-bit microcontroller
Data Sheet
package
board
software

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IRMCF183M
IRMCF183M
Data Sheet

Product details

  • Control Option
    1 motor
  • Description
    smallest package
  • Integration Level
    MCE+MCU
  • Moisture Sensitivity Level
    2
  • Package
    QFN32
  • Type of Memory
    Flash
OPN
IRMCF183MTR
Product Status not for new design
Infineon Package
MLPQ 5X5 32L
Package Name N/A
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 2
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status not for new design
Infineon Package
MLPQ 5X5 32L
Package Name -
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 2
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
iMOTION™ IRMC motor controller with Motion Control Engine (MCE 1.0) and 8051 MCU in QFN-32 package. The IRMCF183 is a flexible control solution for variable speed drives based on a dual core device. The motor controller performs sensor less field oriented control (FOC) for a variable speed drive based on a permanent magnet synchronous motor (PMSM). The integrated MCU is based on an 8-bit 8051 core and is used to implement customer functionality.

Features

  • Motion Control Engine (MCE)
  • MCU 8051 with 30MHz
  • Single or two shunt curr. feedback
  • Loss minimization Space Vector PWM
  • Digital & analog peripheral set
  • UART serial interface
  • Analog & digital application IOs
  • Integrated protection features
  • JTAG interface
  • 64 KB flash memory
  • Tiny QFN32 5x5 mm²

Benefits

  • Fastest time to market
  • No programming required
  • Easy motor parametrization & tuning
  • Lowest BOM cost
  • Single shunt sensorless FOC
  • Highly efficiencent speed control
  • OP amps & comparators
  • MCU for user application code

Applications
