IRHNS9A3064SCS
IRHNS9A3064SCS
Data Sheet

Product details

  • Configuration
    Discrete
  • Die Size
    6
  • Download Model
    https://www.infineon.com/cms/dgdl/Infineon-Spice_File_IRHNS9A7064-SimulationModels-v01_01-EN.spi?fileId=8ac78c8c84f2c0670184f4f87d8212f0
  • ESD Class
    Class 3B
  • Generation
    R9
  • ID (@100°C) max
    100 A
  • ID (@25°C) max
    100 A
  • Language
    SPICE
  • Optional TID Rating (kRad(si))
    100 300
  • Package
    SupIR-SMD
  • Polarity
    N
  • Product Category
    Rad hard MOSFETS
  • QG
    194 nC
  • QPL Part Number
    2N7652U2A
  • Qualification
    QIRL
  • RDS (on) (@25°C) max
    4 mΩ
  • SEE
    Yes
  • TID max
    300 Krad(Si)
  • VBRDSS min
    60 V
  • VF max
    1.2 V
  • Voltage Class
    100 V
OPN
Product Status
Infineon Package
Package Name
Packing Size
Packing Type
Moisture Level
Moisture Packing
Lead-free
Halogen Free
RoHS Compliant
Infineon stock last updated:

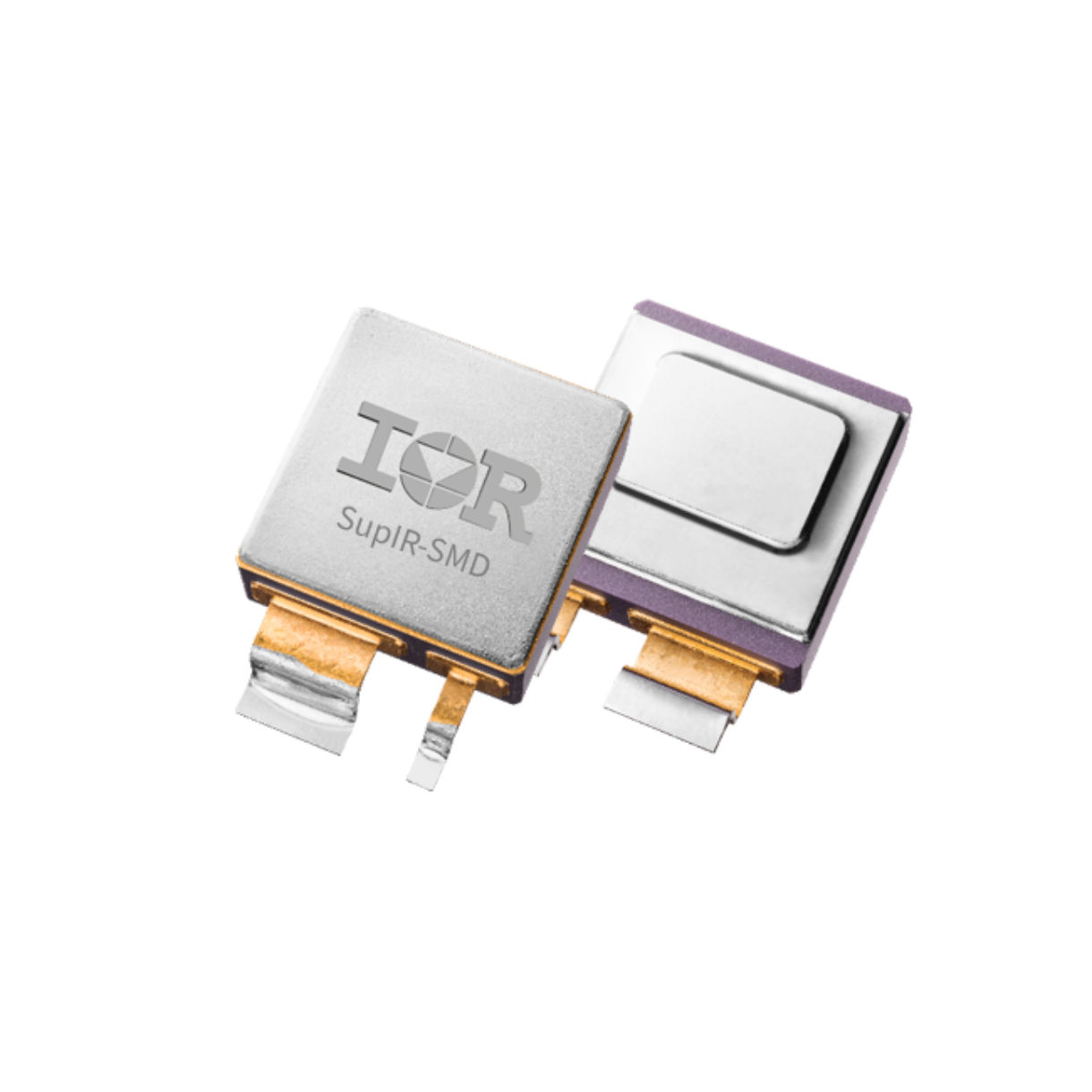

The IRHNS9A3064SCS R9 N-channel MOSFET is a radiation-hard, 60V, 100A device. In a SupIR-SMD package, it provides electrical performance up to 300krad(Si) TID and is QIRL space-grade. With low RDS(on) and faster switching times, it is ideal for high-speed switching applications, such as DC-DC converters and motor controllers. Its superior immunity to Single Event Effects (SEE) and LET up to 90MeV·cm2/mg makes it perfect for space applications.
