IRHNJ67134SCS
IRHNJ67134SCS
Data Sheet

Product details

  • Configuration
    Discrete
  • Die Size
    3
  • ESD Class
    Class 2
  • Generation
    R6
  • ID (@100°C) max
    12 A
  • ID (@25°C) max
    19 A
  • Language
    SPICE
  • Optional TID Rating (kRad(si))
    100 300
  • Package
    SMD-0.5
  • Polarity
    N
  • Product Category
    Rad hard MOSFETS
  • QG
    50 nC
  • QPL Part Number
    2N7589U3
  • Qualification
    QIRL
  • RDS (on) (@25°C) max
    88 mΩ
  • TID max
    100 Krad(Si)
  • VBRDSS min
    150 V
  • VF max
    1.2 V
  • Voltage Class
    100 V
OPN
Product Status
Infineon Package
Package Name
Packing Size
Packing Type
Moisture Level
Moisture Packing
Lead-free
Halogen Free
RoHS Compliant
Infineon stock last updated:

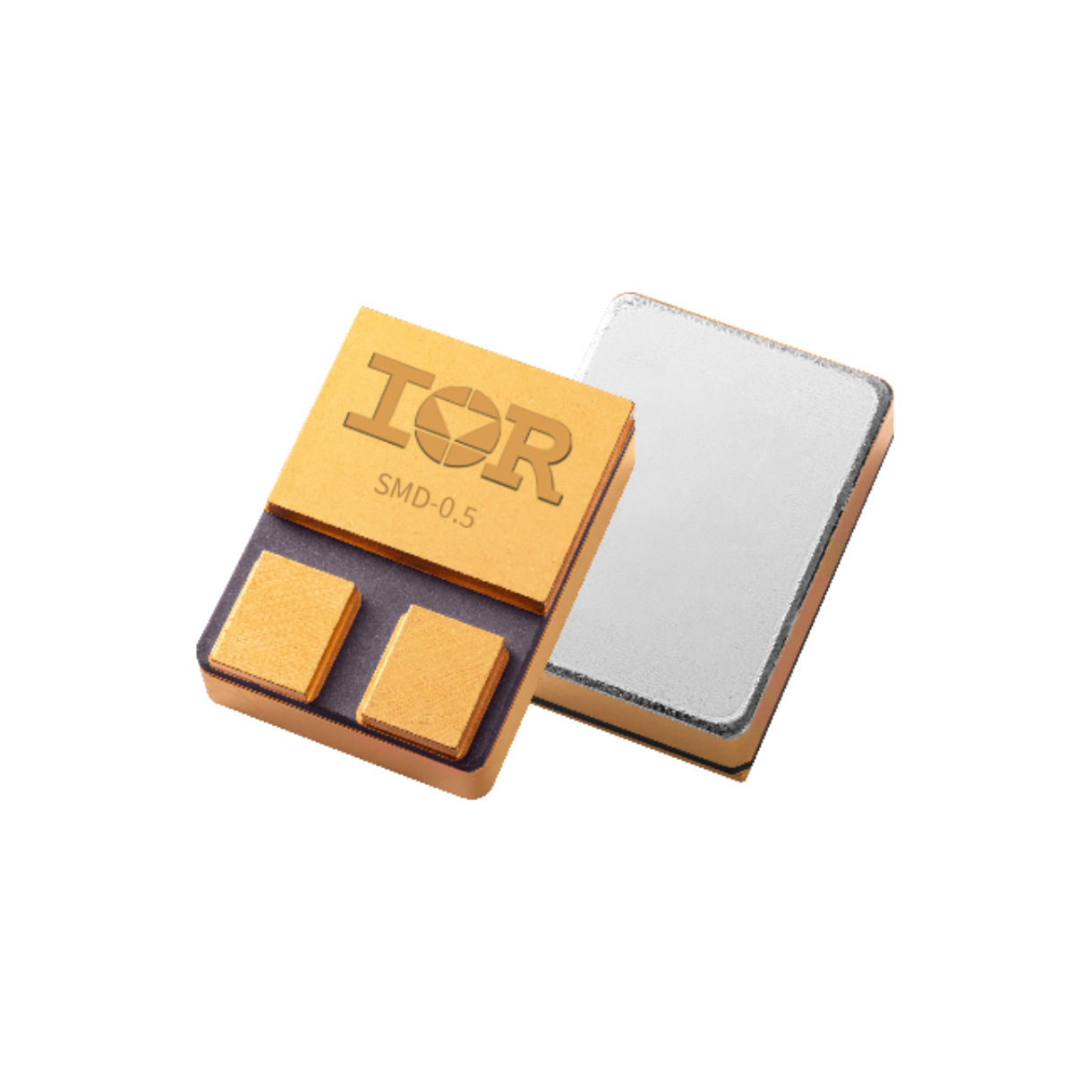

The rad hard N-channel MOSFET in SMD-0.5 package is perfect for space applications. With very low RDS(on), faster switching times, and improved immunity to SEE, IRHNJ67134SCS MOSFETs offer high performance and power density, making them ideal for high-speed switching applications. This single N-channel R6 MOSFET can handle up to 150V and 19A.
