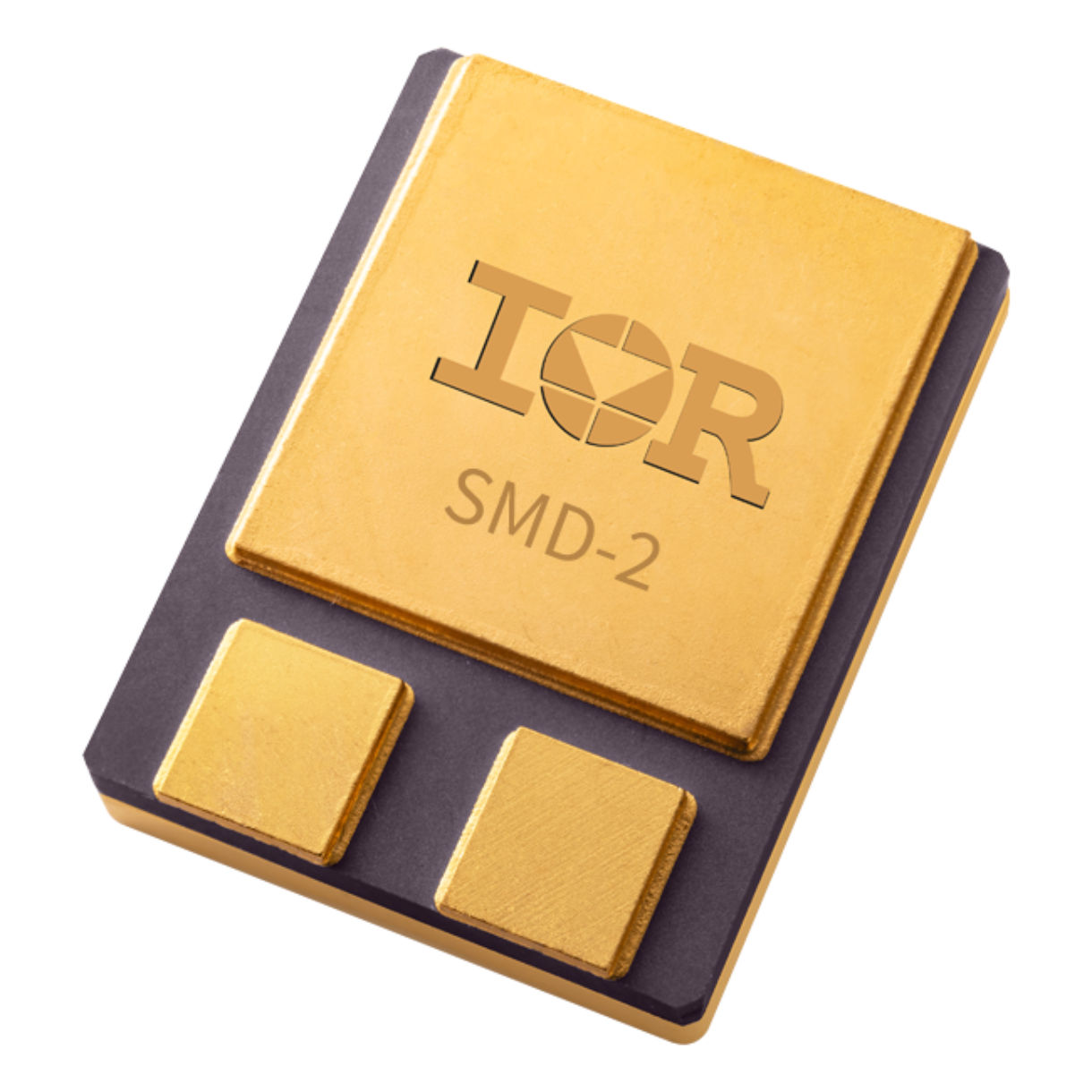

IRHNA67164SCS
IRHNA67164SCS
Data Sheet

Product details

  • Configuration
    Discrete
  • Die Size
    6
  • ESD Class
    Class 3A
  • Generation
    R6
  • ID (@100°C) max
    49 A
  • ID (@25°C) max
    56 A
  • Language
    SPICE
  • Optional TID Rating (kRad(si))
    100 300
  • Package
    SMD-2
  • Polarity
    N
  • Product Category
    Rad hard MOSFETS
  • QG
    230 nC
  • QPL Part Number
    2N7581U2
  • Qualification
    QIRL
  • RDS (on) (@25°C) max
    18 mΩ
  • TID max
    100 Krad(Si)
  • VBRDSS min
    150 V
  • VF max
    1.2 V
  • Voltage Class
    100 V
OPN
Product Status
Infineon Package
Package Name
Packing Size
Packing Type
Moisture Level
Moisture Packing
Lead-free
Halogen Free
RoHS Compliant
Infineon stock last updated:
IRHNA67164SCS R6 N-channel MOSFET is a rad hard, 150V, 49A MOSFET with a QIRL classification and a SMD-2 package. It offers electrical performance up to 100krad(Si) TID and is ideal for space applications. With low RDS(on) and gate charge, it's ideal for DC-DC converters and motor controllers while retaining MOSFET's benefits of voltage control, fast switching, and temperature stability.
