Active and preferred

IRHLUBN7970Z4

Data Sheet
package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IRHLUBN7970Z4
IRHLUBN7970Z4
Data Sheet

Product details

  • Configuration
    Discrete
  • Die Size
    Z
  • ESD Class
    Class 0
  • Generation
    R7
  • ID (@100°C) max
    -0.33 A
  • ID (@25°C) max
    -0.53 A
  • Language
    SPICE
  • Optional TID Rating (kRad(si))
    100 300
  • Package
    UB
  • Polarity
    P
  • Product Category
    Rad hard MOSFETS
  • QG
    3.6 nC
  • QPL Part Number
    2N7626UB
  • Qualification
    COTS
  • RDS (on) (@25°C) max
    1300 mΩ
  • TID max
    100 Krad(Si)
  • VBRDSS
    -60 V
  • VF max
    -5 V
  • Voltage Class
    100 V
Recommended
OPN
Product Status active and preferred
Infineon Package
C-LCC-3
Package Name LCC-3- Metal lid
Packing Size N/A
Packing Type N/A
Moisture Level N/A
Moisture Packing N/A
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:

Product Status
Active
Infineon Package
C-LCC-3
Package Name LCC-3- Metal lid
Packing Size 0
Packing Type
Moisture Level -
Moisture Packing
Lead Free
Halogen Free
RoHS Compliant

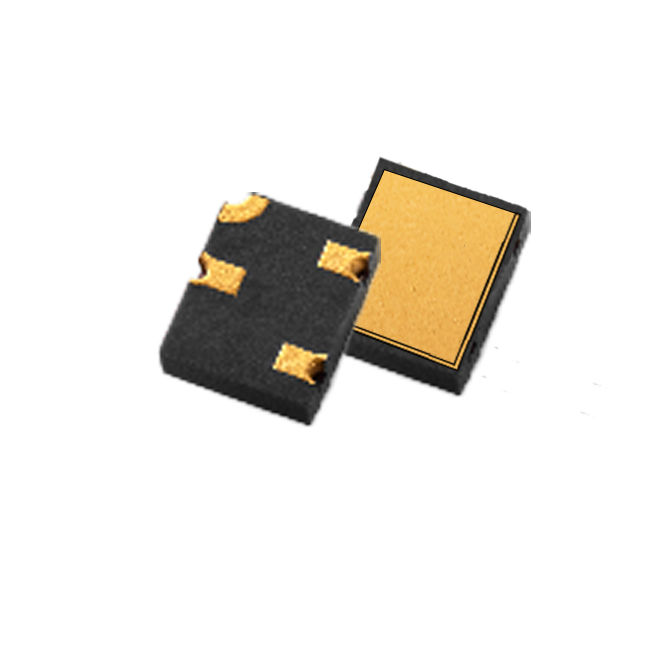

IRHLUBN7970Z4 is a rad hard, 60V, 0.8A, single, N-channel MOSFET in a UB package. SEE hardened and TID rated up to 100 krad(Si) TID, this R7 QIRL device is ideal for space applications including PoL converters for FPGA, ASIC and DSP core rails, power distribution circuits, synchronous rectification and more.
