not for new design
RoHS Compliant
Lead-free

IR3570B

Dual Loop, 3+2 multiphase AMD SVI1 and SVI2 and Intel VR12 and VR12.5 PWM controller for high efficiency, highly accurate VR solutions
Data Sheet

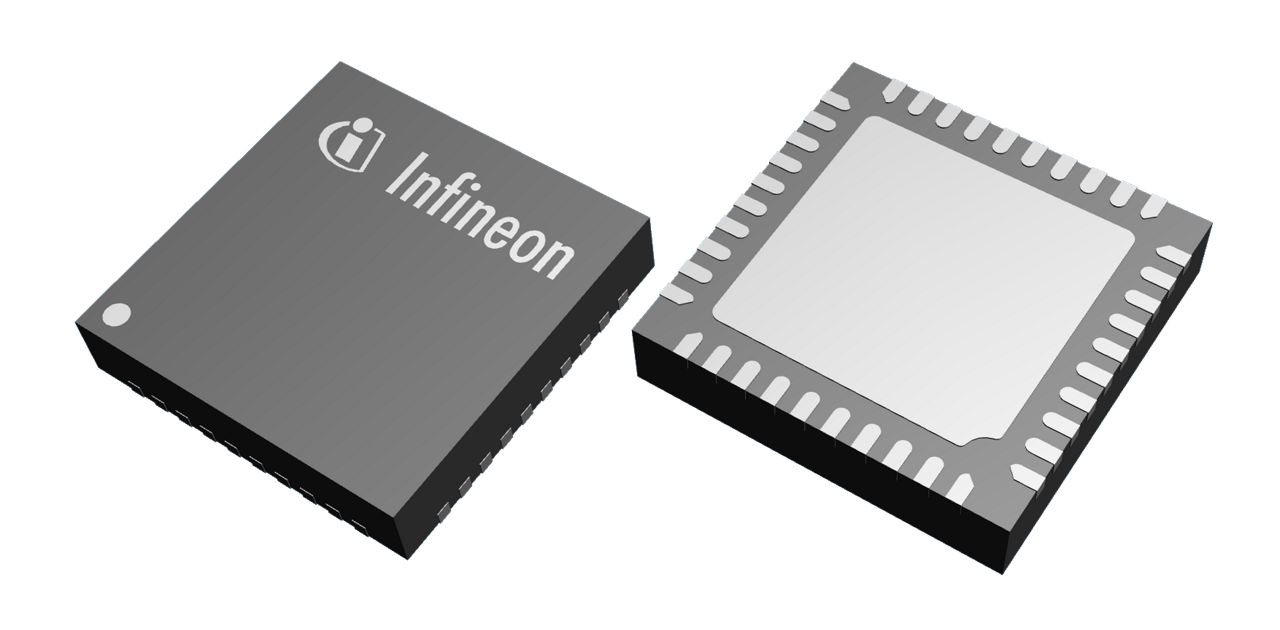

package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IR3570B
IR3570B
Data Sheet

Product details

  • Auto-PSI/DPC
    Yes
  • Configuration
    4+1
  • Interfaces
    I2C, PMBus, SMBus
  • Maximum Phases
    5
  • Moisture Sensitivity Level
    2
  • OverClocking
    Yes
  • Package
    QFN 5 x 5 40-Pin
  • Processor Type
    CPU / GPU
  • Qualification
    Industrial
  • Technology
    DCIC
  • VGD
    Yes
  • Voltage Outputs
    2
OPN
IR3570BMTRPBF
Product Status not for new design
Infineon Package
QFN 5X5 40L
Package Name N/A
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level N/A
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status not for new design
Infineon Package
QFN 5X5 40L
Package Name -
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level -
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant

Benefits

  • Dual output 4+1 and 3+2 phase PWM Controllers
  • Easiest layout and fewest pins in the industry
  • Fully supports AMD® SVI1 and SVI2 with dual OCP and Intel® VR12 and VR12.5
  • Complies with VR12.5 Rev 1.3 requirement for SVID register 15h to have <200 µSec filter
  • Overclocking and Gaming Mode
  • Switching frequency from 200kHz to 2MHz per phase
  • IR Efficiency Shaping Features including Dynamic Phase Control and Automatic Power State Switching
  • IR Adaptive Transient Algorithm (ATA) on both loops minimizes output bulk capacitors and system cost
  • Auto-Phase Detection with auto-compensation
  • Per-Loop Fault Protection: OVP, UVP, OCP, OTP, CFP
  • I2C/SMBus/PMBus system interface for telemetry of Temperature, Voltage, Current and Power for both loops
  • Multiple Time Programming (MTP) with integrated charge pump for easy custom configuration
  • Compatible with IR ATL and 3.3V tri-state Drivers
  • +3.3V supply voltage -40°C to 85°C ambient operation
  • Pb-Free, RoHS, 5x5mm, 40-pin, 0.4mm pitch QFN

Applications
