IR21363S

600 V three-phase gate driver IC with over current protection, enable and fault reporting
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IR21363S
IR21363S
ea.
Data Sheet

Product details

  • Channels
    6
  • Configuration
    Three Phase
  • Input Vcc
    12 V to 20 V
  • Isolation Type
    Functional levelshift JI (Junction Isolated)
  • Output Current (Source)
    0.2 A
  • Output Current (Sink)
    0.35 A
  • Qualification
    Industrial
  • Turn Off Propagation Delay
    400 ns
  • Turn On Propagation Delay
    425 ns
  • VBS UVLO (On)
    11.1 V
  • VBS UVLO (Off)
    10.9 V
  • VCC UVLO (On)
    11.1 V
  • VCC UVLO (Off)
    10.9 V
  • Voltage Class
    600 V
Recommended
OPN
IR21363STRPBF
Product Status active
Infineon Package
SOIC 28W
Package Name N/A
Packing Size 1000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
SOIC 28W
Package Name -
Packing Size 1000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

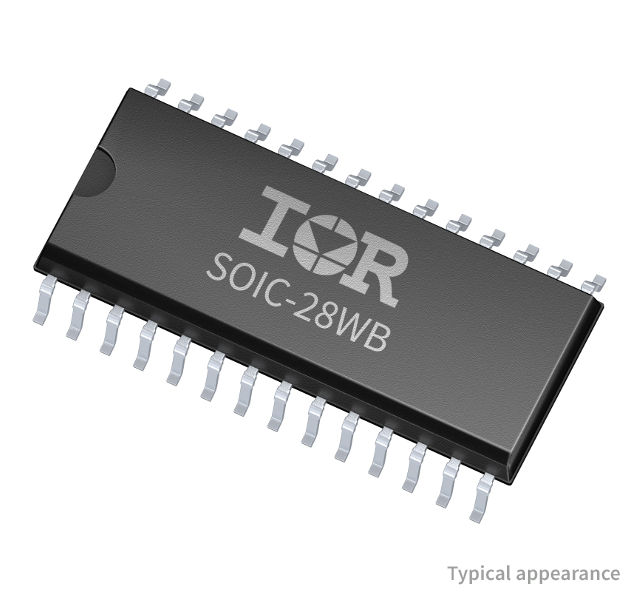

EiceDRIVER™ 600 V 3-phase gate driver IC with typical 0.2 A source and 0.35 A sink current, for 11.1 V/10.9 V UVLO, 400 ns/380 ns propagation delay and 0.46 VITRIP positive going threshold (VITRIP) in SOIC-28 wide body package with junction-isolated level-shift technology for IGBTs and MOSFETs.

Features

  • Floating channel for bootstrap op.
  • Fully operational to +600 V
  • Tolerant to neg. transient volt.
  • dV/dt immune
  • Gate drive supply: 10 V to 20 V
  • Over-current shutdown
  • Under-voltage lockout for all chan.
  • Over-current shutdown
  • Independent 3 half-bridge drivers
  • Matched prop. delay for all chan.
  • Cross-conduction prevention logic
  • 3.3 V logic compatible
