IR1168SPBF

200V Dual Smart Secondary Side High Speed SR Controller in a 8-Lead SOIC Package.
Data Sheet
package
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IR1168SPBF
IR1168SPBF
ea.
Data Sheet

Product details

  • Applications
    LCD TV, PDP TV, Telecom SMPS, AC-DC adapter
  • Package
    8-Pin SOIC(NB)
  • VCC
    8.6 V to 18 V
Recommended
OPN
IR1168STRPBF
Product Status active and preferred
Infineon Package
SOIC 8N
Package Name N/A
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 2
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
SOIC 8N
Package Name -
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 2
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

Benefits

  • Secondary-side high speed controller for synchronous rectification in resonant half bridge topologies
  • 200V proprietary IC technology
  • Max 500KHz switching frequency
  • Anti-bounce logic and UVLO protection
  • 4A peak turn off drive current
  • Micropower start-up and ultra low quiescent current
  • 10.7V gate drive clamp
  • 70ns turn-off propagation delay
  • Wide Vcc operating range
  • Direct sensing for both Synchronous Rectifiers
  • Minimal component count
  • Simple design
  • Lead-free

Diagrams

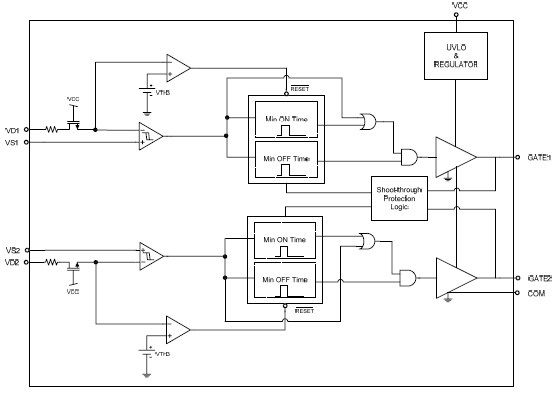

fbd-ir1168s
fbd-ir1168s
fbd-ir1168s fbd-ir1168s fbd-ir1168s

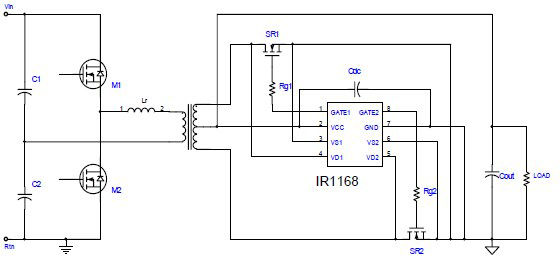

tc-ir1168s tc-ir1168s tc-ir1168s
×
