IR1167BSPBF

END OF LIFE
Smart secondary side driver IC designed to drive N-Channel MOSFETs used as synchronous rectifiers in isolated flyback converters.
Data Sheet
package
board

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IR1167BSPBF
IR1167BSPBF
Data Sheet

Product details

  • Applications
    LCD TV, PDP TV, Telecom SMPS, AC-DC Adapters, Server SMPS
  • Package
    8-Pin SOIC(NB)
  • VCC
    11.4 V to 18 V
OPN
IR1167BSTRPBF
Product Status discontinued
Infineon Package
SOIC 8N
Package Name N/A
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 2
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status discontinued
Infineon Package
SOIC 8N
Package Name -
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 2
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant

Benefits

  • Secondary side high speed SR controller
  • DCM, CrCM and CCM flyback topologies
  • 200V proprietary IC technology
  • Max 500KHz switching frequency
  • Anti-bounce logic and UVLO protection
  • 7A peak turn off drive current
  • Micropower start-up and ultra low quiescent current
  • 10.7/14.5V gate drive clamp
  • 50ns turn-off propagation delay
  • Vcc range from 11.3V to 20V
  • Direct sensing of MOSFET drain voltage
  • Minimal component count, Simple design, and Lead-free
  • Compatible with 1W Standby, Energy Star, CECP, etc.

Applications

Diagrams

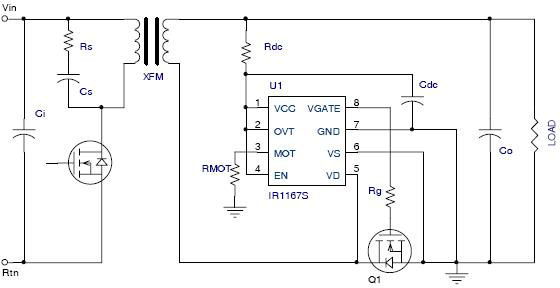

tc-ir1167
tc-ir1167
tc-ir1167 tc-ir1167 tc-ir1167

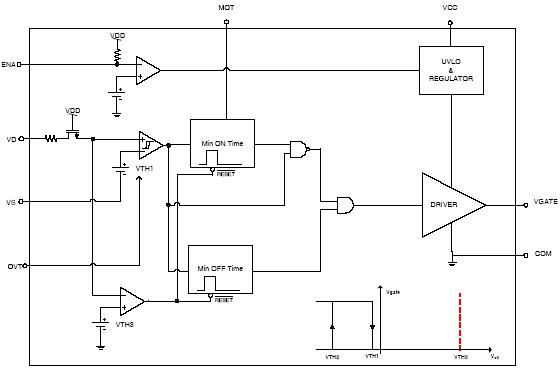

fbd-ir1167 fbd-ir1167 fbd-ir1167
×
