Active and preferred
RoHS Compliant

IQE006NE2LM5

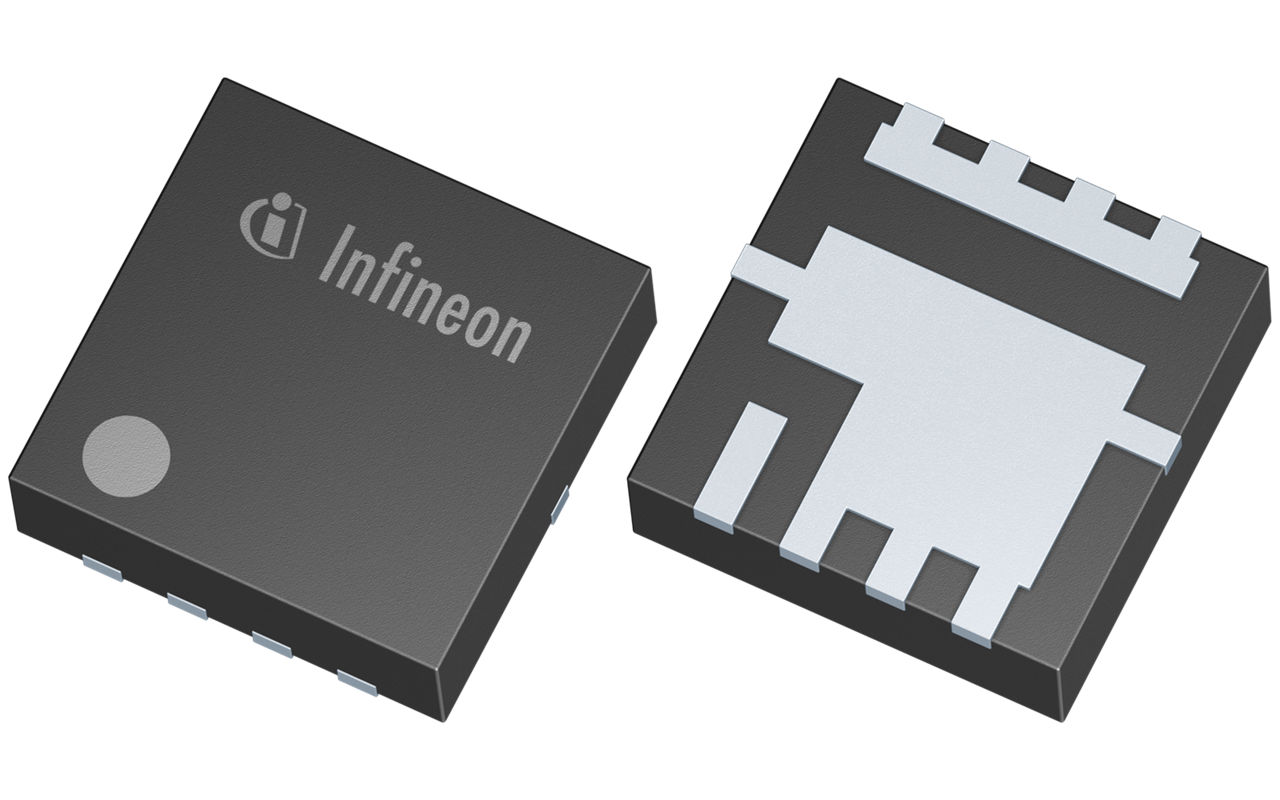

OptiMOS™ 25 V low-voltage power MOSFET in PQFN 3.3x3.3 Source-Down package with industry leading RDS(on).
Data Sheet
package
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IQE006NE2LM5
IQE006NE2LM5
ea.
Data Sheet

Product details

  • Budgetary Price €/1k
    0.66
  • Ciss
    4100 pF
  • Coss
    1700 pF
  • ID (@25°C) max
    298 A
  • IDpuls max
    1192 A
  • Operating Temperature
    -55 °C to 150 °C
  • Package
    PQFN 3.3x3.3 Source-Down
  • Polarity
    N
  • Ptot max
    89 W
  • QG (typ @4.5V)
    28.5 nC
  • QG (typ @10V)
    61.7 nC
  • RDS (on) (@10V) max
    0.65 mΩ
  • RDS (on) (@4.5V) max
    0.8 mΩ
  • RthJA max
    60 K/W
  • RthJC max
    1.4 K/W
  • Rth
    1.4 K/W
  • VDS max
    25 V
  • VGS(th)
    1.3 V to 2 V
  • VGS max
    16 V
Recommended
OPN
IQE006NE2LM5ATMA1
Product Status active and preferred
Infineon Package
PG-TSON-8
Package Name PQFN 3.3x3.3 Source-Down
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free No
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-TSON-8
Package Name PQFN 3.3x3.3 Source-Down
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The innovative Source-Down OptiMOS™ low-voltage power MOSFET 25 V comes in a PQFN3.3x3.3 package size, making it easy to use in the same PCB routing as the Drain-Down solution. In the same package outline of 3.3x3.3mm, the new Source-Down shows an industry benchmark RDS(on) by reducing the current standard RDS(on) of about 30 percent and shows a significant shrink of form factor.

Features

  • RDS(on) reduction up to 30%
  • Superior thermal management option
  • Optimized layout possibilities
  • Two footprint versions available

Benefits

  • Higher current capability
  • Highest power density and performance
  • Shrink of form factor
  • SuperSO8 performance in smaller package
  • Optimized PCB parasitics
  • Decrease of RthJA and RthJC
  • Better transfer of power losses
  • Double-side cooling
  • Source-Down for existing PCB
  • Center-Gate optimizes parallelization
