IQD016N08NM5CGSC

OptiMOS™ power MOSFETs 80 V in PQFN 5x6 Source-Down Center-Gate DSC package with very low RDS(on)
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IQD016N08NM5CGSC
IQD016N08NM5CGSC
ea.
Data Sheet

Product details

  • ID (@25°C) max
    323 A
  • Operating Temperature
    -55 °C to 175 °C
  • Package
    PQFN 5x6 Source-Down
  • Polarity
    N
  • QG (typ @10V)
    106 nC
  • RDS (on) (@10V) max
    1.57 mΩ
  • VDS max
    80 V
  • VGS(th)
    3 V
Recommended
OPN
IQD016N08NM5CGSCATMA1
Product Status active and preferred
Infineon Package
PG-WHTFN-9
Package Name N/A
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free No
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-WHTFN-9
Package Name -
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

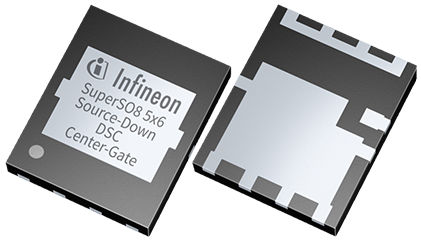

The power MOSFET IQD016N08NM5CGSC comes with a low RDS(on) of 1,57 mOhm combined with outstanding thermal performance for easy power loss management. The Center-Gate footprint is optimized for parallelization. Moreover, with the dual-side cooling package five times more power can be dissipated compared to the overmolded package. This enables higher system efficiency and power density for a large variety of end applications.

Features

  • Cutting edge 80 V silicon technology
  • Outstanding FOMs
  • Improved thermal performance
  • Ultra-low parasitics
  • Maximized chip/package ratio
  • Center-Gate footprint
  • Industry-standard package

Benefits

  • Best switching performance
  • Minimized conduction losses
  • Fast switching
  • Reduced voltage overshoot
  • Increased maximum current capability
  • Less device paralleling required
  • Lowest RDS(on) on a 5x6 footprint
  • Easy thermal management
