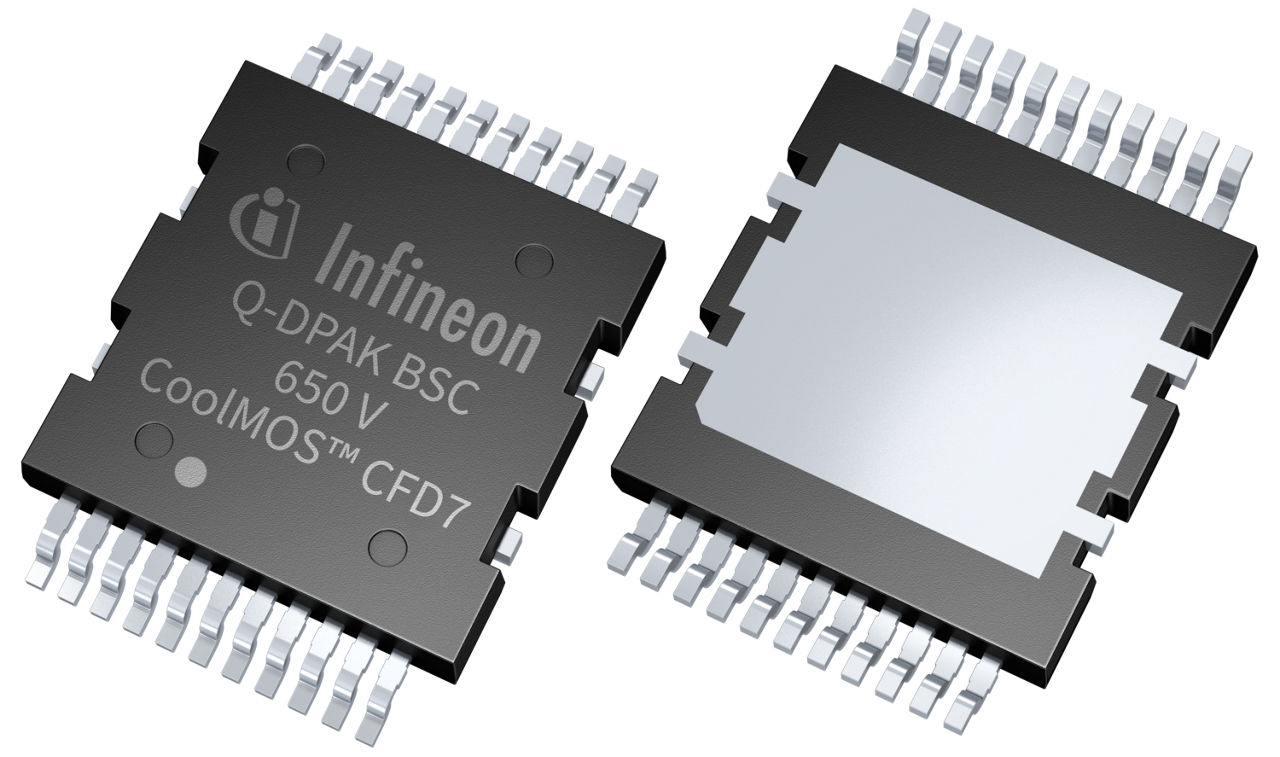

IPQC65R040CFD7

650 V CoolMOS™ N-channel SJ power MOSFET CFD7 in HDSOP-22 bottom-side cooling
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IPQC65R040CFD7
IPQC65R040CFD7
ea.
Data Sheet

Product details

  • ID max
    64 A
  • ID (@25°C) max
    64 A
  • IDpuls max
    211 A
  • Mounting
    SMT
  • Operating Temperature
    -55 °C to 150 °C
  • Package
    Q-DPAK bottom-side cooled
  • Polarity
    N
  • Ptot max
    357 W
  • QG
    97 nC
  • QG (typ @10V)
    97 nC
  • RDS (on) (@ Tj = 25°C)
    34 mΩ
  • VDS max
    650 V
  • VGS(th)
    4 V
Recommended
OPN
IPQC65R040CFD7XTMA1
Product Status active and preferred
Infineon Package
PG-HDSOP-22
Package Name Q-DPAK bottom-side cooled
Packing Size 750
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-HDSOP-22
Package Name Q-DPAK bottom-side cooled
Packing Size 750
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The 650 V CoolMOS™ CFD7 is Infineon’s latest high voltage superjunction MOSFET technology with integrated fast body diode, completing the CoolMOS™ 7 series. CoolMOS™ CFD7 comes with reduced gate charge (Qg), improved turn-off behavior and a reverse recovery charge (Qrr) of up to 69% lower compared to the competition, as well as the lowest reverse recovery time (trr) in the market. The bottom-side cooled package minimizes conduction losses and enables standardized cooling and mounting of the device.

Features

  • Ultra-fast body diode
  • 650 V break down voltage
  • Best-in-class RDS(on)
  • Reduced switching losses
  • Reduced switching losses

Benefits

  • Excellent hard commutation ruggedness
  • Safety margin for high voltage designs
  • Increased power density solutions
  • Outstanding light load efficiency
  • Improved full load efficiency

Applications
