IPG20N06S2L-50A

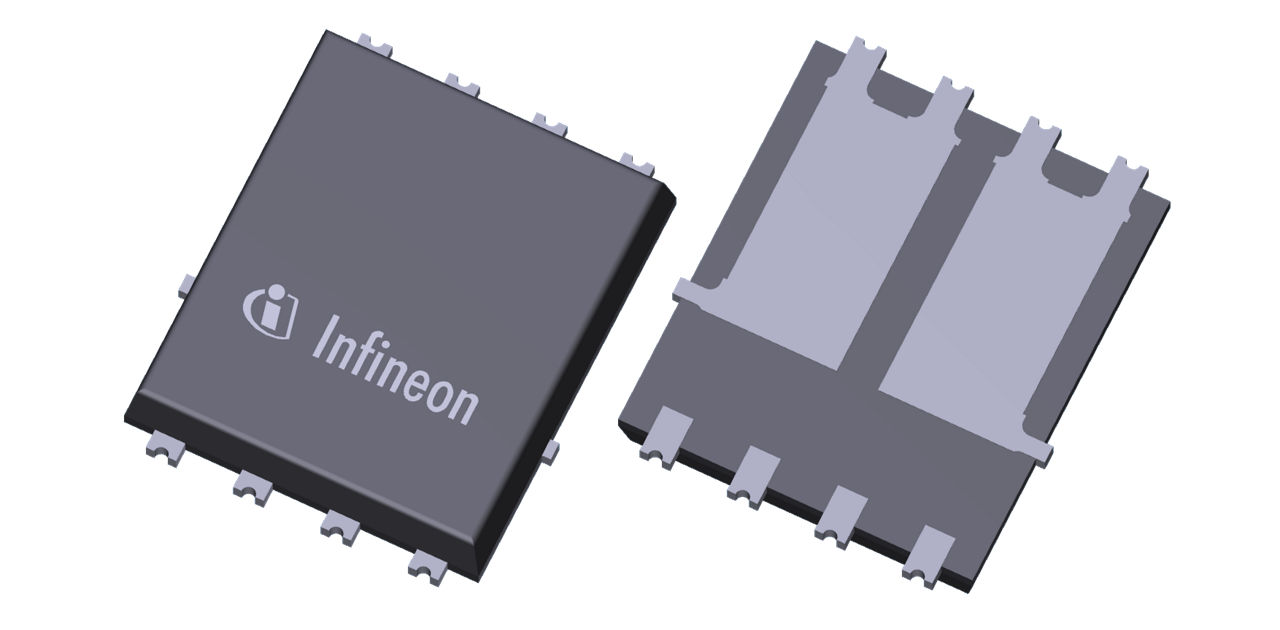

55 V, Dual N-Ch, 50 mΩ max, Automotive MOSFET, dual SSO8 (5x6), OptiMOS™
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IPG20N06S2L-50A
IPG20N06S2L-50A
ea.
Data Sheet

Product details

  • Budgetary Price €/1k
    0.38
  • ID (@25°C) max
    20 A
  • IDpuls max
    80 A
  • Launch year
    2013
  • Operating Temperature
    -55 °C to 175 °C
  • Package
    dual SS08 (PG-TDSON-8)
  • Currently planned availability until at least
    2033
  • Polarity
    N+N
  • Ptot max
    51 W
  • QG (typ @10V) max
    17 nC
  • QG (typ @10V)
    13 nC
  • Qualification
    Automotive
  • RDS (on) (@10V) max
    50 mΩ
  • RthJC max
    2.9 K/W
  • Technology
    OptiMOS™
  • VDS max
    55 V
  • VGS(th)
    1.6 V
Recommended
OPN
IPG20N06S2L50AATMA1
Product Status active and preferred
Infineon Package
PG-TDSON-8
Package Name Dual SSO8
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free No
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-TDSON-8
Package Name Dual SSO8
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

Features

  • Dual N-ch-Logic Level-Enhancement mode
  • Automotive AEC Q101 qualified
  • MSL1 up to 260°C peak reflow
  • 175°C operating temperature
  • Green Product (RoHS compliant)
  • 100% Avalanche tested
  • PPAP Capable Device
  • Automatic optical inspection viable
  • Dual Super S08 substitutes DPAKs

Benefits

  • Significant PCB area savings
  • System level cost reduction
  • Bond wire is 200um for up to 20A current
  • Larger source lead for wire bonding
  • Package: PG-TDSON-8-4
  • Equal performance to DPAK, same die size
  • Exposed pad for thermal transfer
  • 2 N-Channel MOSFETs; Isolated Leadframes
