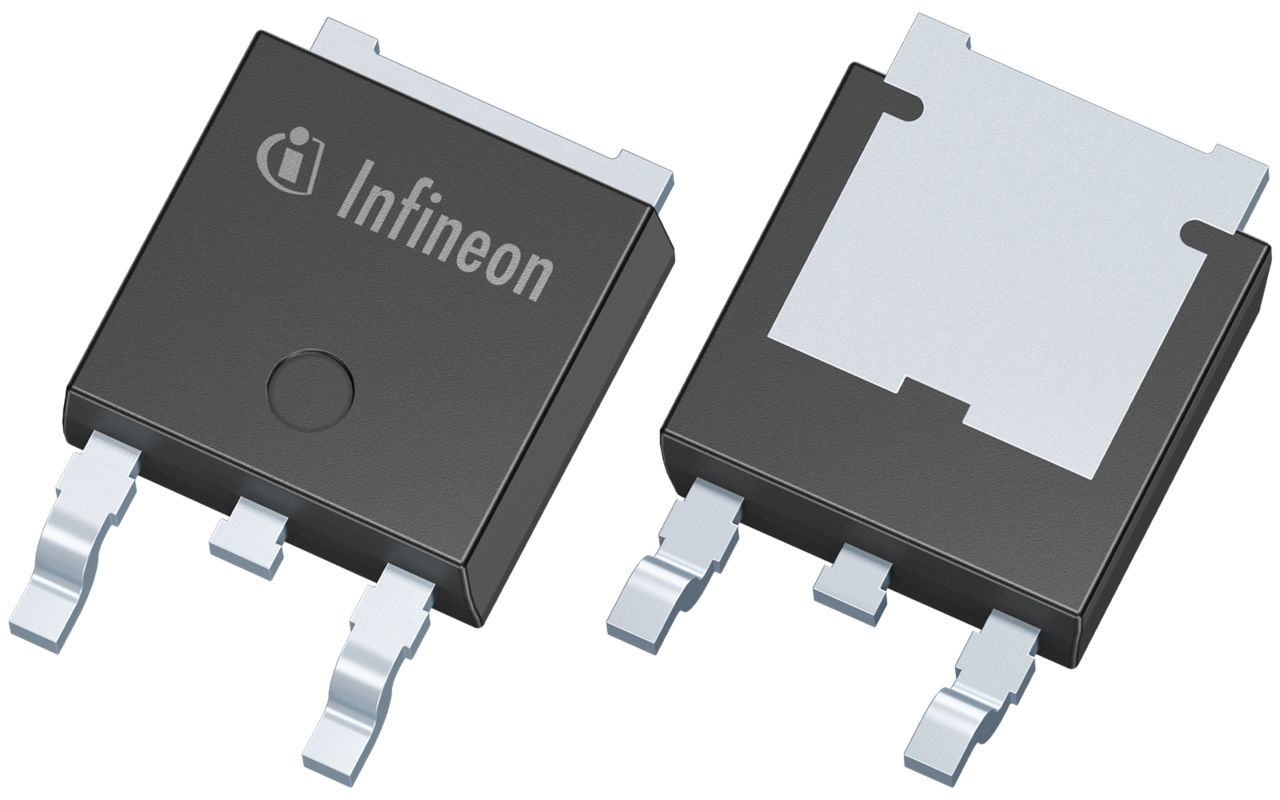

IPD60R600E6

Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IPD60R600E6
IPD60R600E6
ea.
Data Sheet

Product details

  • ID (@25°C) max
    7.3 A
  • ID max
    7.3 A
  • IDpuls max
    19 A
  • Mounting
    SMT
  • Operating Temperature min
    -55 °C
  • Package
    DPAK
  • Pin Count
    3 Pins
  • Polarity
    N
  • Ptot max
    63 W
  • QG
    20.5 nC
  • QG (typ @10V)
    20.5 nC
  • RDS (on) max
    600 mΩ
  • RDS (on) (@10V) max
    600 mΩ
  • RthJA max
    62 K/W
  • RthJC max
    2 K/W
  • Rth
    2 K/W
  • VDS max
    600 V
  • VGS(th)
    2.5 V to 3.5 V
OPN
IPD60R600E6ATMA1
Product Status not for new design
Infineon Package
PG-TO252-3
Package Name DPAK
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free No
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status not for new design
Infineon Package
PG-TO252-3
Package Name DPAK
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
CoolMOS™ E6 combines Infineon's experience as the leading superjunction MOSFET supplier with best-in-class innovation. The offered devices provide all benefits of a fast switching SJ MOSFET while not sacrificing ease-of-use. Extremely low switching and conduction losses make switching applications even more efficient, compact, lighter and cooler.600V CoolMOS™ E6 is replacement for 600V CoolMOS™ C3650V CoolMOS™ E6 is replacement for 650V CoolMOS™ C3

Features

  • Easy control of switching behavior
  • Very high commutation ruggedness
  • Extremely low losses due to very low Figure of Merit (R DS(ON)*Q g) and E oss)
  • Easy to use
  • Better light load efficiency compared to C3
  • Outstanding reliability with proven CoolMOS™ quality combined with high body diode ruggedness
  • Better price performance in comparison to previous CoolMOS™ generations
  • More efficient, more compact, lighter and cooler

Benefits

  • Improved power density
  • Improved reliability
  • General purpose part can be used in both soft and hard switching topologies
  • Better light load effciency
  • Improved effciency in hard switching applications
  • Improved ease-of-use
  • Reduces possible ringing due to pcb layout and package parasitic effects

Applications
