Active and preferred
RoHS Compliant
Lead-free

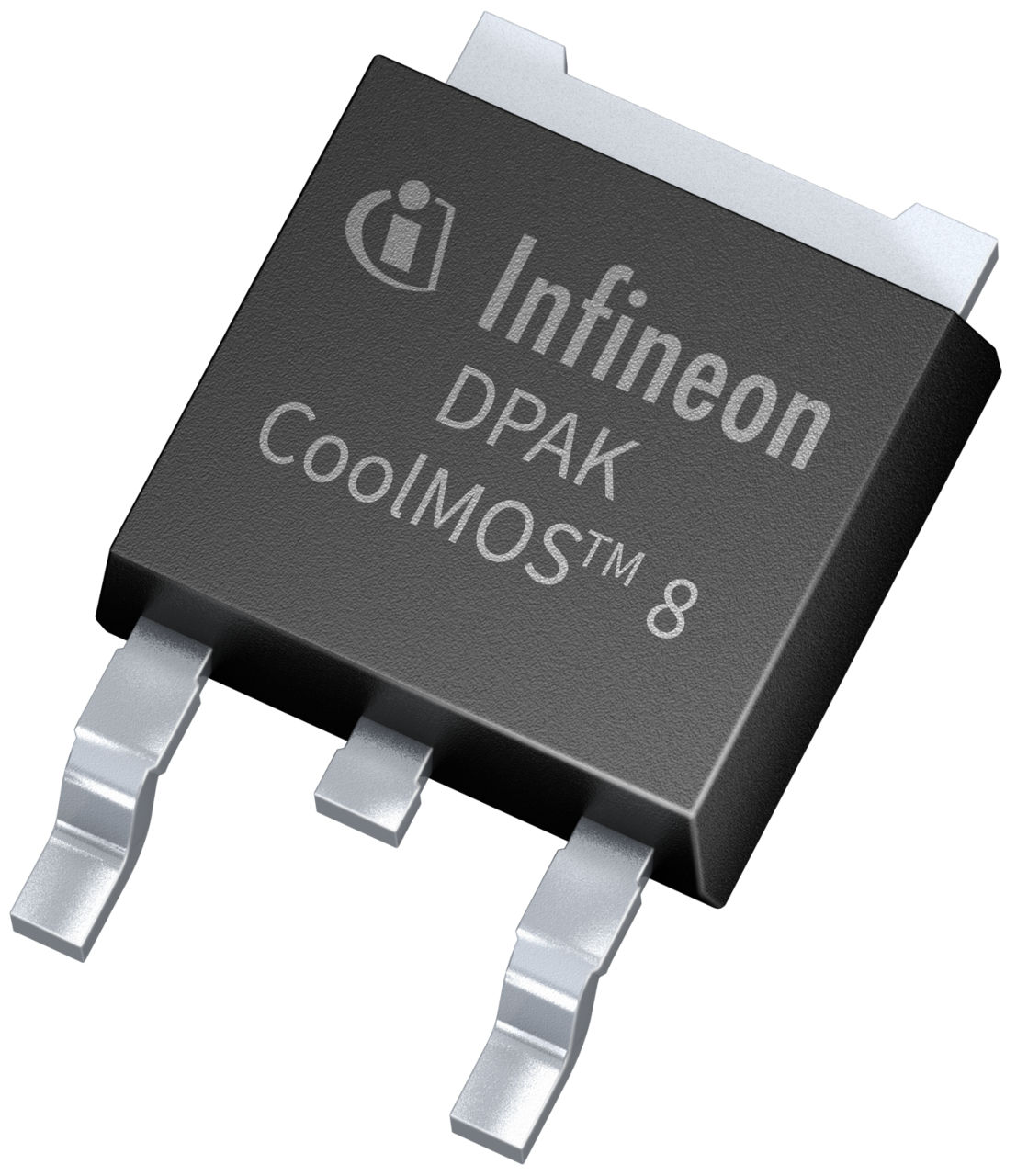

IPD60R600CM8

IPD60R600CM8 600 V CoolMOS™ 8 power transistor
Data Sheet
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IPD60R600CM8
IPD60R600CM8
ea.
Data Sheet

Product details

  • Budgetary Price €/1k
    0.28
  • ID (@25°C) max
    5 A
  • IDpuls max
    14 A
  • Mounting
    SMT
  • Operating Temperature
    -55 °C to 150 °C
  • Package
    DPAK
  • Polarity
    N
  • QG
    6 nC
  • QG (typ @10V)
    6 nC
  • RDS (on) (@10V) max
    600 mΩ
  • RDS (on) max
    600 mΩ
  • VDS max
    600 V
  • VGS(th)
    4.2 V
Recommended
OPN
IPD60R600CM8XTMA1
Product Status active and preferred
Infineon Package PG-TO252-3
Package Name N/A
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package PG-TO252-3
Package Name -
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The 600 V CoolMOS™ 8 SJ MOSFETs series is the successor to the 600 V CoolMOS™ 7 MOSFET family including P7, S7, CFD7, C7 (G7) and PFD7.It comes with reduced gate charge (Qg) of 20% over CFD7, reduction in turn-off losses (Eoss) is further improved by 12% over CFD7, reverse recovery charge (Qrr) is 3% lower compared to the CFD7, as well as the lowest reverse recovery time (trr) in the market.

Features

  • Best-in-class RDS(on)*A
  • Significant reduction of losses
  • Excellent commutation ruggedness
  • Integrated fast body diode
  • .XT interconnection
  • ESD protection

Benefits

  • Increased power density
  • Ease of use and fast design-in
  • Low ringing tendency
  • Simplified thermal management
  • Simplified portfolio

Applications
