IPB120P04P4-04

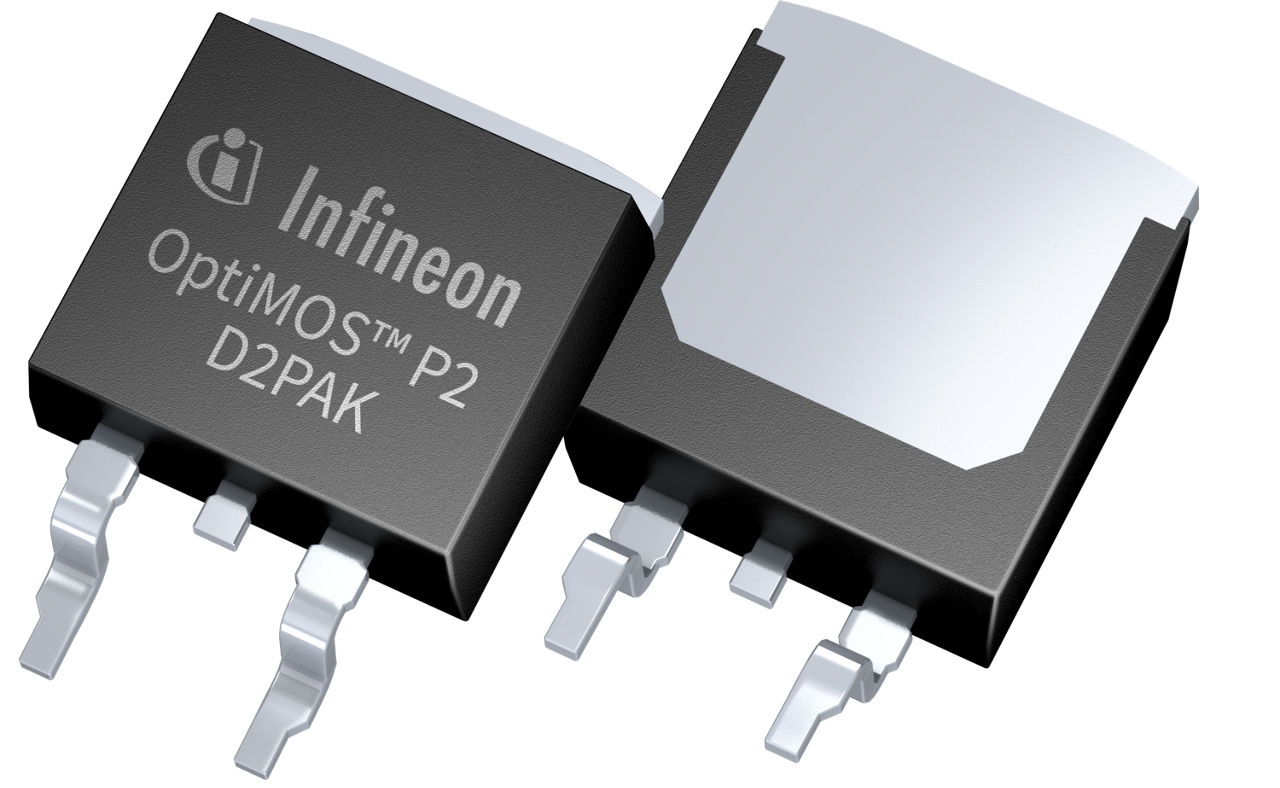

-40 V, P-Ch, 3.6 mΩ max, Automotive MOSFET, D2PAK, OptiMOS™-P2
Data Sheet
package
Multiple OPNs available
ea.

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IPB120P04P4-04
IPB120P04P4-04
ea.
Data Sheet

Product details

  • Budgetary Price €/1k
    1.04
  • ID (@25°C) max
    -120 A
  • IDpuls max
    -480 A
  • Launch year
    2011
  • Operating Temperature
    -55 °C to 175 °C
  • Package
    D2PAK (PG-TO263-3)
  • Planned to be available until at least
    2030
  • Polarity
    P
  • Ptot max
    136 W
  • QG (typ @10V)
    158 nC
  • QG (typ @10V) max
    205 nC
  • Qualification
    Automotive
  • RDS (on) (@10V) max
    3.6 mΩ
  • RthJC max
    1.1 K/W
  • Technology
    OptiMOS™-P2
  • VDS max
    -40 V
  • VGS(th)
    -3 V
Recommended
OPN
IPB120P04P404ATMA2 IPB120P04P404ATMA1
Product Status active and preferred discontinued
Infineon Package
PG-TO263-3
PG-TO263-3
Package Name D2PAK D2PAK
Packing Size 1000 1000
Packing Type TAPE & REEL TAPE & REEL
Moisture Level 1 N/A
Moisture Packing NON DRY NON DRY
Lead-free No No
Halogen Free Yes Yes
RoHS Compliant Yes Yes
Infineon stock last updated:
 ea. in stock
View replacement

Product Status
Active
Infineon Package
PG-TO263-3
Package Name D2PAK
Packing Size 1000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

Product Status discontinued
Infineon Package
PG-TO263-3
Package Name D2PAK
Packing Size 1000
Packing Type TAPE & REEL
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

Features

  • P-channel-Logic Level-Enhancement mode
  • Automotive AEC Q101 qualified
  • MSL1 up to 260°C peak reflow
  • 175°C operating temperature
  • Green Product (RoHS compliant)
  • 100% Avalanche tested
  • PPAP Capable Device

Benefits

  • No charge pump for high-side drive
  • Simple interface drive circuit
  • Highest current capability
  • Lowest switching and conduction losses
  • Highest thermal efficiency
  • Robust packages & superior quality
  • Optimal total gate charge
  • Standard TO packages: 252, 263, 220, 262
