IPAN60R280PFD7S

END OF LIFE

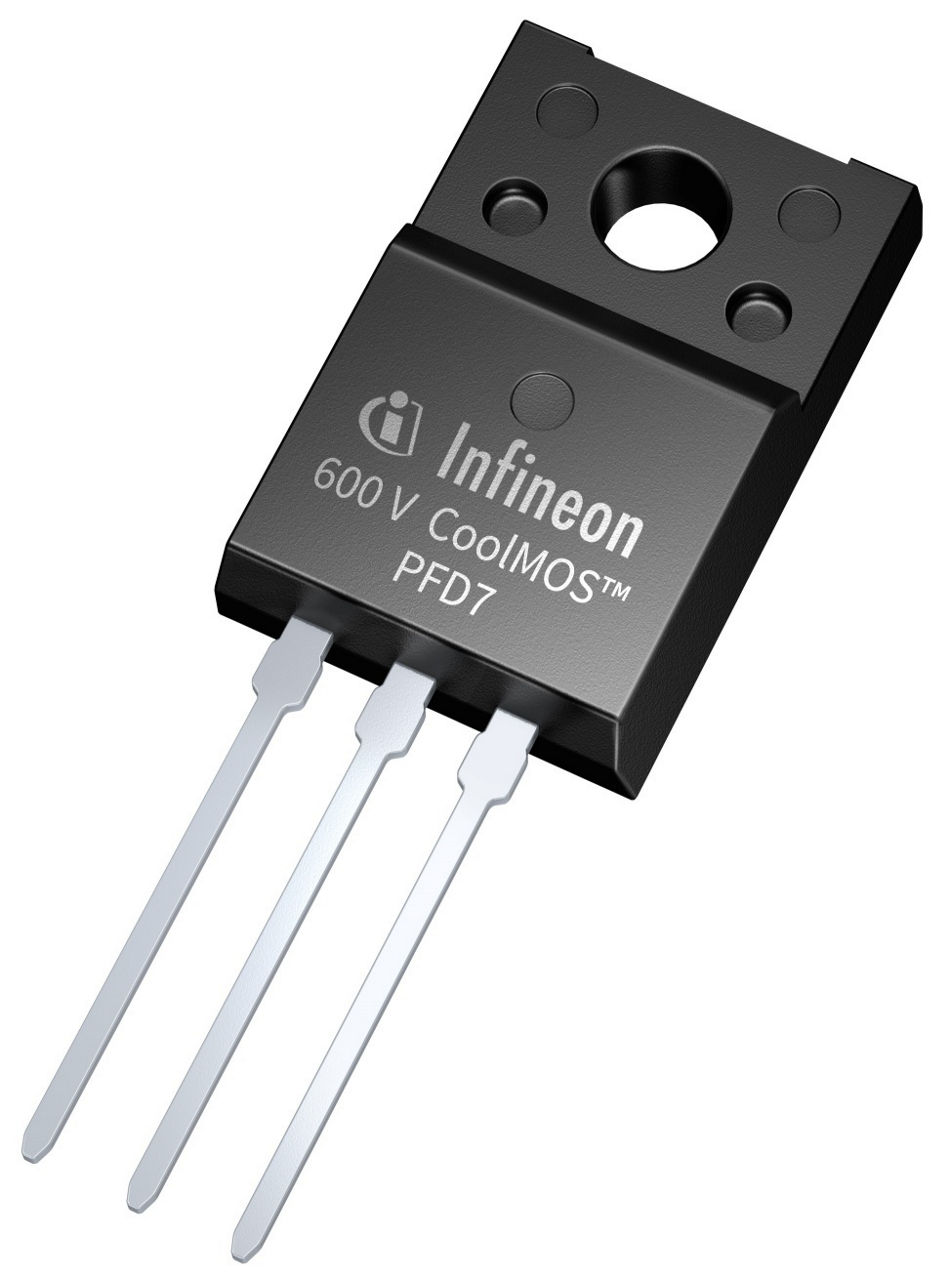

600V CoolMOS™ PFD7 superjunction MOSFET in TO-220 FullPAK narrow-lead package
Data Sheet
View replacement

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IPAN60R280PFD7S
IPAN60R280PFD7S
View replacement
Data Sheet

Product details

  • Budgetary Price €/1k
    0.53
  • ID max
    12 A
  • ID (@25°C) max
    12 A
  • IDpuls max
    31 A
  • Mounting
    THT
  • Operating Temperature
    -40 °C to 150 °C
  • Package
    TO220 FullPAK narrow leads
  • Pin Count
    3 Pins
  • Polarity
    N
  • Ptot max
    24 W
  • QG (typ @10V)
    15.3 nC
  • QG
    15.3 nC
  • RDS (on) (@10V) max
    280 mΩ
  • RDS (on) max
    280 mΩ
  • Special Features
    price/performance
  • VDS max
    600 V
  • VGS(th)
    4 V
OPN
IPAN60R280PFD7SXKSA1
Product Status discontinued
Infineon Package PG-TO220-3
Package Name TO220 FullPAK narrow leads
Packing Size 500
Packing Type TUBE
Moisture Level NA
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
View replacement

Product Status discontinued
Infineon Package PG-TO220-3
Package Name TO220 FullPAK narrow leads
Packing Size 500
Packing Type TUBE
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
The 600V CoolMOS™ PFD7 high-voltage MOSFET series sets a new benchmark in 600V superjunction (SJ) technologies, shaped by Infineon’s experience of more than 20 years in pioneering in superjunction technology innovation. The series combines best-in-class performance with state-of-the-art ease of use and features an integrated fast body diode ensuring a robust device and in turn reduced BOM for the customer.

Features

  • CoolMOS™ 7 series
  • low gate charge
  • low stored energy in COSS
  • low Qrr
  • CoolMOS™ since 1998

Benefits

  • better control
  • higher switching frequencies
  • high efficiency @ soft switching
  • BOM cost reduction & easy manufacturing
  • Narrow lead

Applications
