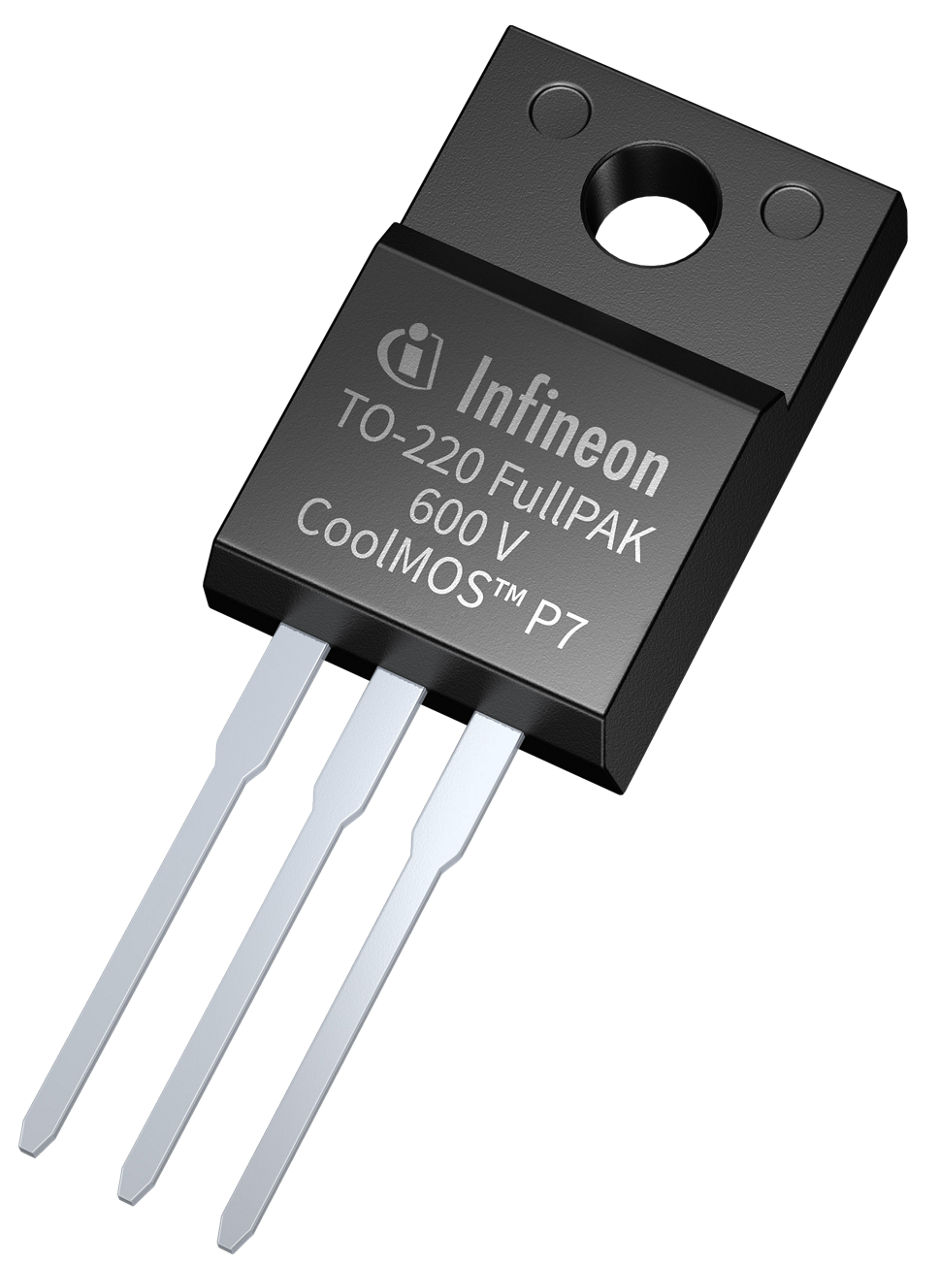

IPAN60R180P7S

Optimized superjunction MOSFETs merging high energy efficiency with ease-of-use
Data Sheet
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IPAN60R180P7S
IPAN60R180P7S
ea.
Data Sheet

Product details

  • Budgetary Price €/1k
    0.61
  • ID max
    18 A
  • ID (@25°C) max
    18 A
  • IDpuls max
    53 A
  • Mounting
    THT
  • Operating Temperature
    -40 °C to 150 °C
  • Package
    TO220 FullPAK narrow leads
  • Pin Count
    3 Pins
  • Polarity
    N
  • Ptot max
    26 W
  • QG
    25 nC
  • QG (typ @10V)
    25 nC
  • RDS (on) (@10V) max
    180 mΩ
  • RDS (on) max
    180 mΩ
  • VDS max
    600 V
  • VGS(th)
    3 V
Recommended
OPN
IPAN60R180P7SXKSA1
Product Status active
Infineon Package PG-TO220-3
Package Name TO220 FullPAK narrow leads
Packing Size 500
Packing Type TUBE
Moisture Level NA
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package PG-TO220-3
Package Name TO220 FullPAK narrow leads
Packing Size 500
Packing Type TUBE
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The 600V CoolMOS™ P7 superjunction MOSFET is the successor to the 600V CoolMOS™ P6 series. It continues to balance the need for high efficiency against the ease-of-use in the design process. The best-in-class RonxA and the inherently low gate charge (QG) of the CoolMOS™ 7th generation platform ensure its high efficiency.

Features

  • CoolMOS™ 7 series
  • low gate charge
  • low stored energy in COSS
  • integrated gate resistor
  • Fieldproven CoolMOS™ quality
  • CoolMOS™ since 1998

Benefits

  • better control
  • high efficiency @ hard switching
  • higher power density
  • MOSFET suits hard & resonant topologies
  • Narrow lead
