IMW120R007M1H

CoolSiC™ 1200 V, 7 mΩ SiC Trench MOSFET in TO247-3 package
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IMW120R007M1H
IMW120R007M1H
ea.
Data Sheet

Product details

  • Ciss
    9170 pF
  • Coss
    420 pF
  • ID (@25°C) max
    225 A
  • Mounting
    THT
  • Operating Temperature
    -55 °C to 175 °C
  • Package
    TO-247-3
  • Pin Count
    3 Pins
  • Polarity
    N
  • Ptot (@ TA=25°C) max
    750 W
  • Qgd
    64 nC
  • QG
    220 nC
  • Qualification
    Industrial
  • RDS (on) (@ Tj = 25°C)
    7 mΩ
  • RthJA max
    62 K/W
  • RthJC max
    0.2 K/W
  • Technology
    CoolSiC™ G1
  • Tj max
    175 °C
  • VDS max
    1200 V
Recommended
OPN
IMW120R007M1HXKSA1
Product Status active
Infineon Package
PG-TO247-3
Package Name TO247
Packing Size 240
Packing Type TUBE
Moisture Level NA
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-TO247-3
Package Name TO247
Packing Size 240
Packing Type TUBE
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
CoolSiC™ MOSFET discrete 1200 V, 7 mΩ G1 in TO247-3 package build on a state-of-the-art trench semiconductor process optimized to combine performance with reliability. The SiC MOSFET offers the lowest gate charge and device capacitance levels seen in 1200 V switches, no reverse recovery losses of the internal commutation proof body diode, temperature independent low switching losses, and threshold-free on-state characteristic.

Features

  • Best in class switching losses
  • Best in class conduction losses
  • Benchmark gate threshold voltage
  • Vth > 4 V
  • 0V turn-off gate voltage applicable
  • Wide gate-source voltage range
  • Robust diode for hard commutation
  • Temp. ind. turnoff switching losses
  • .XT interconnection technology

Diagrams

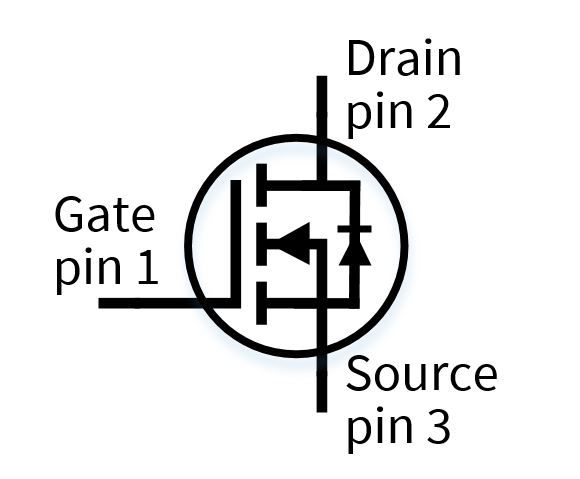

CoolSiCMOSFET_3-pin
