IMDQ75R060M2H

NEW

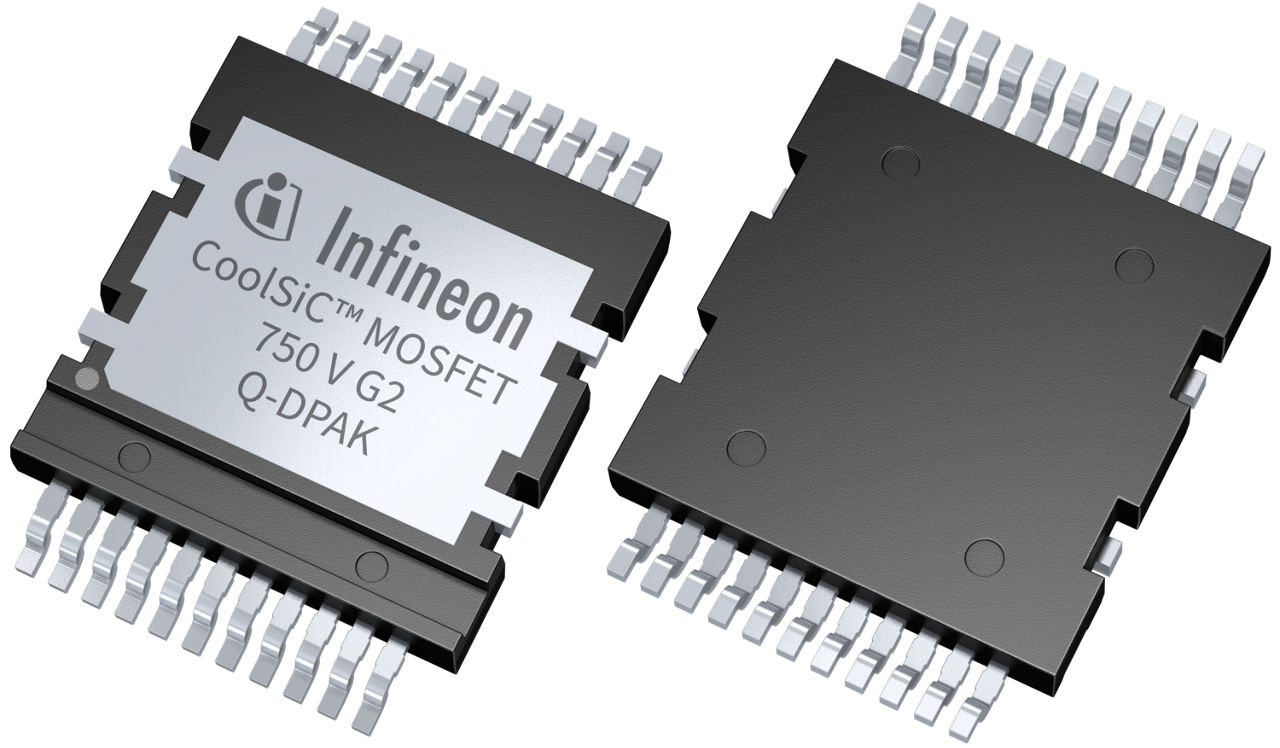

CoolSiC™ MOSFET 750 V G2 in Q-DPAK top-side cooled package, 60 mΩ
Data Sheet
package
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IMDQ75R060M2H
IMDQ75R060M2H
ea.
Data Sheet

Product details

  • ID (@25°C) max
    30 A
  • Mounting
    SMT
  • Operating Temperature
    -55 °C to 175 °C
  • Package
    PG-HDSOP-22
  • Polarity
    N
  • Qualification
    Industrial
  • RDS (on) (@ Tj = 25°C)
    60 mΩ
  • RthJC max
    1.17 K/W
  • Technology
    CoolSiC™ G2
  • VDS max
    750 V
Recommended
OPN
IMDQ75R060M2HXTMA1
Product Status active and preferred
Infineon Package
PG-HDSOP-22
Package Name Q-DPAK
Packing Size 750
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-HDSOP-22
Package Name Q-DPAK
Packing Size 750
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The CoolSiC™ MOSFET 750 V Generation 2 offers improved switching performance, reduced losses, and enhanced thermal management. With a 25% increase in switching speed and up to 35% improved Figure-of-Merits compared to Generation 1, it enables more efficient, compact, and reliable systems for industrial applications.

Features

  • 100% avalanche tested
  • Best‑in‑class RDS(on) x Qfr
  • Excellent RDS(on) x Qoss & RDS(on) x QG
  • Unique low Crss/Ciss & high VGS(th)
  • Improved package interconnect with .XT
  • Driver source pin available

Benefits

  • Enhanced robustness and reliability
  • Superior efficiency in hard switching
  • Higher switching frequency
  • Robustness against parasitic turn on
  • Best‑in‑class thermal dissipation
  • Reduced switching losses

Applications
