IM63D135A

XENSIV™ IM63D135A- Robust digital MEMS microphone for high sound pressure levels
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IM63D135A
IM63D135A
ea.
Data Sheet

Product details

  • AOP
    135 dBSPL
  • Classification
    AEC-Q103-003
  • Current Consumption
    1100 µA
  • Frequency Range
    7 Hz to 24000 Hz
  • Interfaces
    Digital PDM
  • Package dimensions
    3.50 x 2.65 x 0.98 mm3
  • Currently planned availability until at least
    2033
  • Sensitivity
    -41 dBFS
  • SNR
    63.5 dB(A)
  • Supply Voltage ((V))
    1.62 - 3.60
Recommended
OPN
IM63D135AXTMA1
Product Status active and preferred

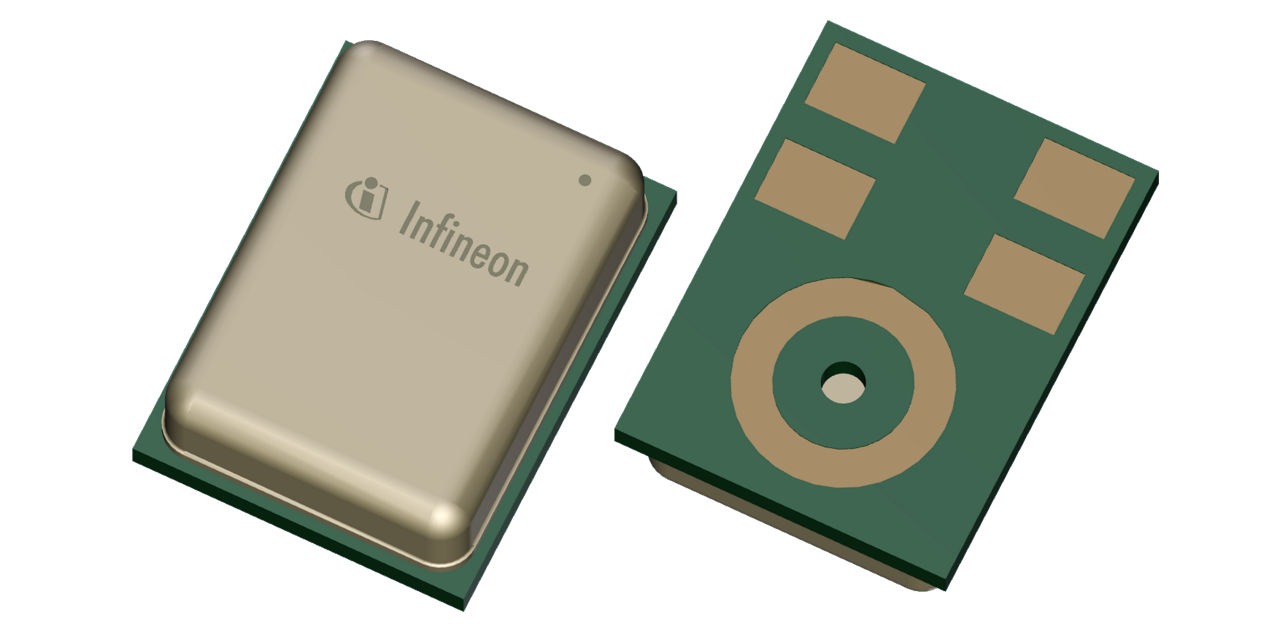

Infineon Package
PG-TLGA-5
Package Name N/A
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-TLGA-5
Package Name -
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
High-performance digital MEMS microphones qualified according to automotive quality standard AEC-Q103-003. They are suited to all applications outside and inside the car, where the best audio performance in harsh environments and a digital PDM interface is required. Robust for very high sound pressure levels. Best suited for external sound detection and active/road noise cancellation.

Features

  •  AEC-Q103-003
  • IP 57
  • Very high AOP=135 dB SPL
  • Temperature range TA = -40°C -105°C
  • Flat frequency response down to 7Hz
  • Digital PDM output
  •  High dynamic range
  •  THD < 1% up to high SPL levels
  • Small surface mount package

Benefits

  • High wind-noise robustness
  • Flat frequency response
  • Low frequency roll-off
  • Enlarged operating temperature
  • Long availability
  • Automotive qualified
  • Close sensitivity matching
  • Close phase matching
  • Clear speech up to high SPL levels

Applications
