IM523-X6A

CIPOS™ Mini 600 V, 17 A three-phase intelligent power module
Data Sheet
package
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IM523-X6A
IM523-X6A
ea.
Data Sheet

Product details

  • Built in NTC
    Yes
  • Configuration
    3 Phase Open Emitter
  • Pmot (10kHz)
    1400 W
  • Product Group
    CIPOS™ Mini
  • Rated Current
    17 A
  • Switch Type
    IGBT
  • Voltage Class
    600 V
Recommended
OPN
IM523X6AXKMA1
Product Status active and preferred
Infineon Package
N/A
Package Name DIP 36x21
Packing Size 280
Packing Type TUBE
Moisture Level NA
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
N/A
Package Name DIP 36x21
Packing Size 280
Packing Type TUBE
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

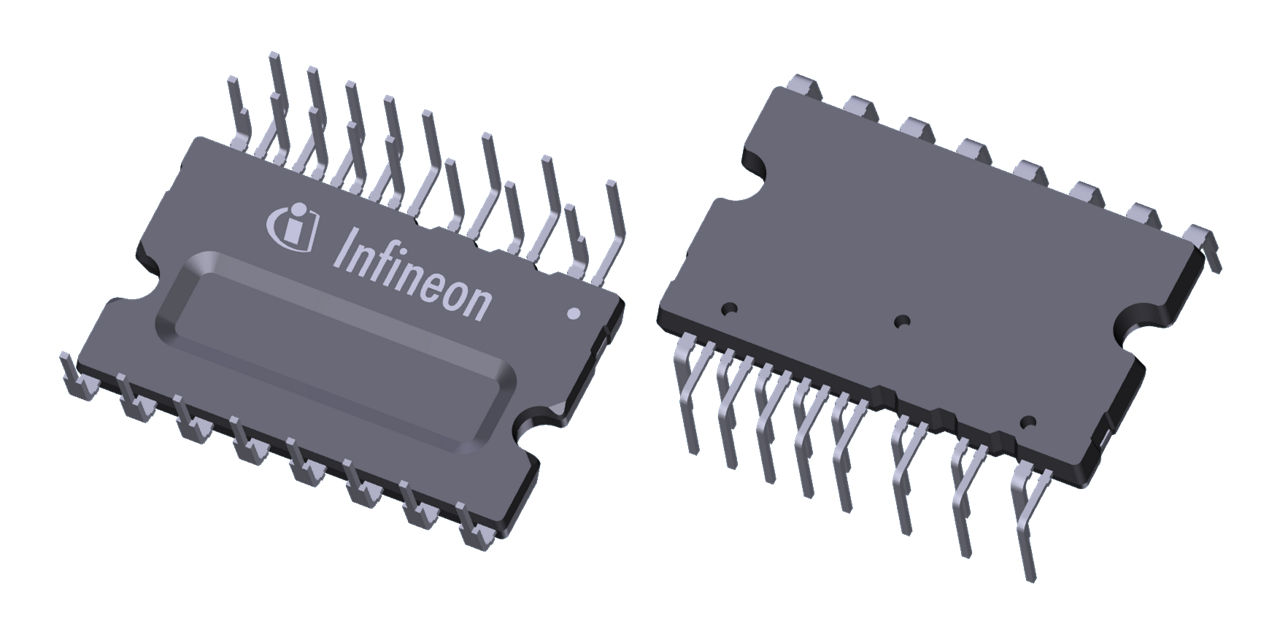

CIPOS™ Mini 600 V, 17 A three-phase TRENCHSTOP™ RCD2 IGBT based intelligent power module with open emitter in DIP 36x21. It is designed to control 3-phase motors in variable speed drive in low and medium power applications. Our leading-edge RC-Drives IGBTs, TRENCHSTOP™ RCD2 are combined with a fully-featured SOI gate driver to deliver excellent performance.

Features

  • 600 V TRENCHSTOP™ RCD2 IGBT
  • 3 phase inverter configurations
  • Open emitters
  • Based on DIP 36X21 package
  • Current ratings: 6 A - 17 A
  • Best optimized performance
  • Gate driver IC in SOI technology
  • Improved humidity ruggedness
