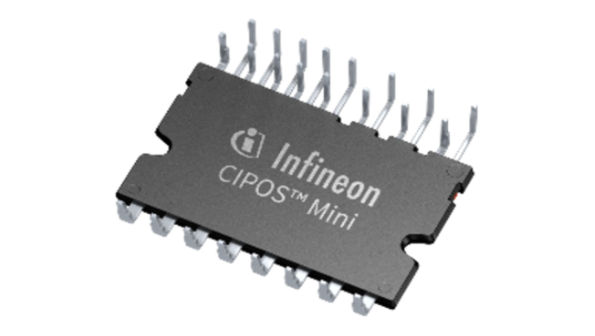

IM06B15AC1

CIPOS™ Mini 600 V 15 A, three-phase intelligent power module
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IM06B15AC1
IM06B15AC1
ea.
Data Sheet

Product details

  • Additional Information
    Electrical
  • Built in NTC
    Yes
  • Configuration
    3 Phase Open Emitter
  • Encryption
    no
  • IC (@ 25°)
    15 A
  • Language
    PLECS
  • Pmot (10kHz)
    2000 W
  • Product Category
    Intelligent Power Modules (IPM)
  • Product Group
    CIPOS™ Mini
  • Product Name
    IM06B30AC1
  • Qualification
    Industrial
  • Rated Current
    15 A
  • Switch Type
    IGBT
  • Voltage Class
    600 V
Recommended
OPN
IM06B15AC1XKMA1
Product Status active and preferred
Infineon Package
N/A
Package Name DIP 36x21
Packing Size 280
Packing Type TUBE
Moisture Level NA
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
N/A
Package Name DIP 36x21
Packing Size 280
Packing Type TUBE
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

Features

  • Based on 650 V TRENCHSTOP™ IGBT 7
  • 600 V 3 phase inverter
  • Power rating up to 2000 W at 10 kHz
  • Over current shutdown
  • Under-voltage lockout
  • Temperature monitoring
  • H3TRB passed
  • UL-certified

Benefits

  • High integrations for easy design
  • Excellent power loss
  • Excellent thermal performance
  • Compact footprint
