IKWH60N65WR6

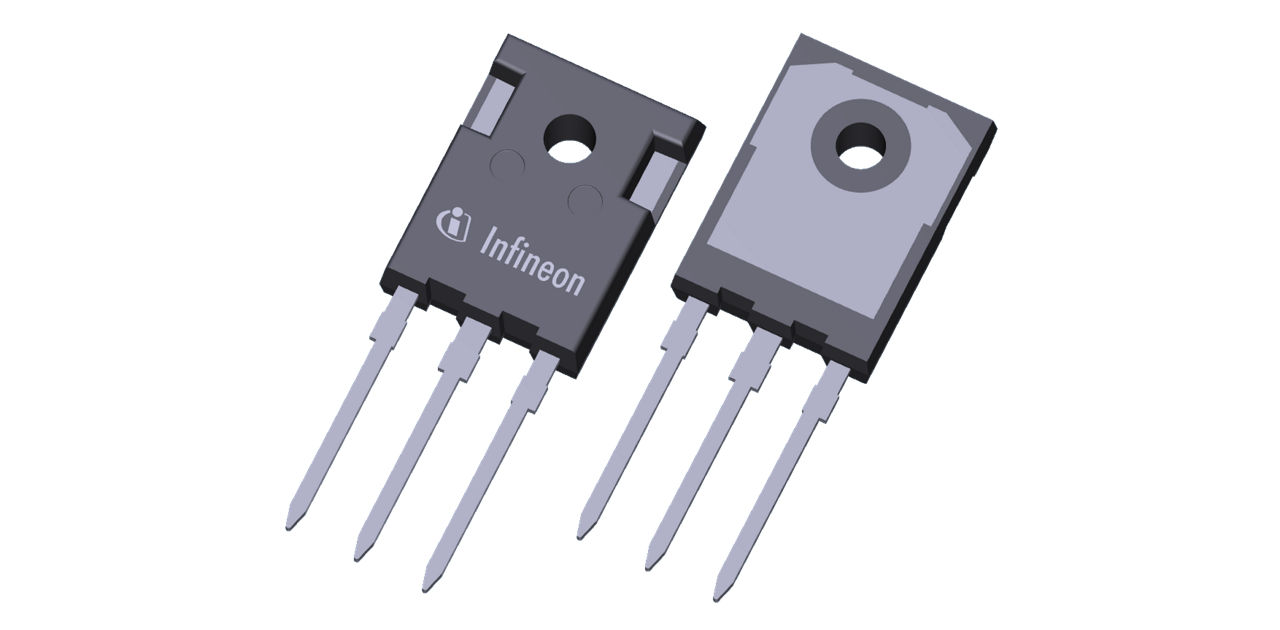

650 V, 60 A IGBT with anti-parallel diode in TO-247-3-HCC package
Data Sheet
package
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IKWH60N65WR6
IKWH60N65WR6
ea.
Data Sheet

Product details

  • Eoff (Hard Switching)
    0.85 mJ
  • Eon
    1.82 mJ
  • IC (@ 25°) max
    100 A
  • IC (@ 100°) max
    60 A
  • ICpuls max
    180 A
  • IF max
    32 A
  • IFpuls max
    60 A
  • Irrm
    34 A
  • Package
    TO-247-3-HCC
  • Ptot max
    120 W
  • QGate
    174 nC
  • Qrr
    3800 nC
  • RGint
    0 Ω
  • RG
    15 Ω
  • Switching Frequency
    20 kHz to 75 kHz
  • td(off)
    311 ns
  • td(on)
    35 ns
  • Technology
    TRENCHSTOP™ 5 WR6
  • tf
    23 ns
  • tr
    28 ns
  • VCE(sat)
    1.55 V
  • VCE max
    650 V
  • VF
    1.3 V
  • VGE(th)
    4 V
Recommended
OPN
IKWH60N65WR6XKSA1
Product Status active and preferred
Infineon Package
PG-TO247-3
Package Name N/A
Packing Size 240
Packing Type TUBE
Moisture Level NA
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-TO247-3
Package Name -
Packing Size 240
Packing Type TUBE
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
High speed 650 V, 60 A reverse conducting TRENCHSTOP™ 5 WR6 IGBT in high creepage and clearance TO247-3-HCC package. It is specifically optimized for PFC for RAC / CAC and Welding inverter application. WR6 is offering lowest VCEsat, and Esw which allows the switching frequency up to 75 kHz. WR6 IGBT also enable more reliable design with the increased clearances and creepage distances.

Features

  • Lowest VCEsat1.4 V at 25°C
  • Monolithically integrated diode
  • Lowest Esw
  • High creepage & clearance package

Benefits

  • Improved price performance ratio
  • Optimized diode
  • Lowest switching losses
  • reliable against contamination
