IGO60R070D1

END OF LIFE
Gallium nitride CoolGaN™ 600V e-mode power transistor IGO60R070D1 for ultimate efficiency and reliability
Data Sheet
package
board

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IGO60R070D1
IGO60R070D1
Data Sheet

Product details

  • Green
    RoHS compliant, Halogen free
  • ID (@ TA=25°C) max
    31 A
  • IDpuls (@25°C) max
    60 A
  • Language
    SPICE

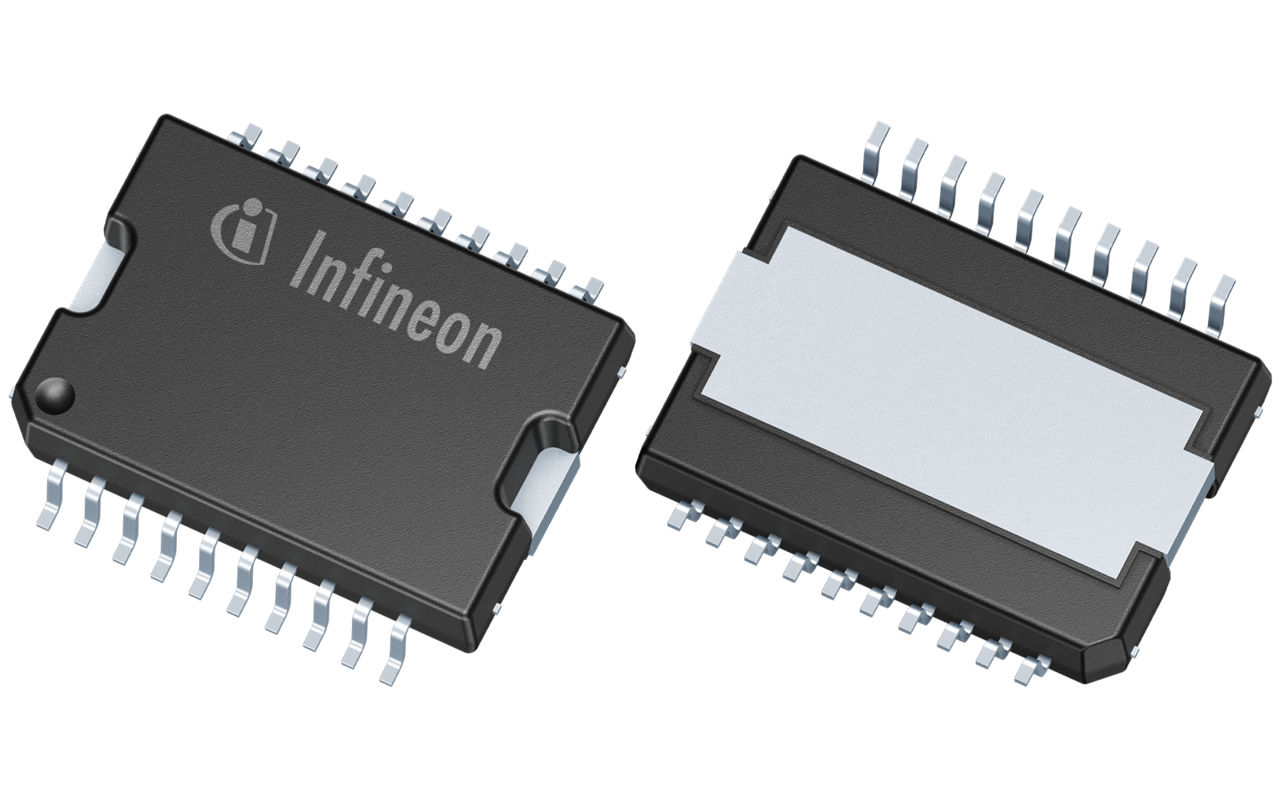

  • Package
    DSO-20-85
  • Product Name
    IGO60R070D1
  • Ptot max
    125 W
  • QG
    5.8 nC
  • Qualification
    Industrial
  • RDS (on) (typ)
    55 mΩ
  • VBRDSS max
    600 V
  • VDS max
    600 V
  • VGS(th)
    1.2 V
OPN
IGO60R070D1AUMA2
Product Status discontinued
Infineon Package
PG-DSO-20
Package Name N/A
Packing Size 800
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free No
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status discontinued
Infineon Package
PG-DSO-20
Package Name -
Packing Size 800
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
The IGO60R070D1 enables more compact topologies and increased efficiency at higher frequency operation. It is certified through an extensive GaN-specific qualification process, exceeding industry standards. Housed in the leaded SMD DSO-20-85 package, it is designed for optimal power dissipation required in modern data centers, server , telecom , renewables, and numerous other applications.

Features

  • E-mode HEMT – normally OFF
  • Ultrafast switching
  • No reverse-recovery charge
  • Capable of reverse conduction
  • Low gate charge, low output charge
  • Superior commutation ruggedness
  • JEDEC qualified (JESD47, JESD22)
  • Low dynamic RDS(on)
  • Bottom-side cooled

Benefits

  • Improves system efficiency
  • Improves power density
  • Enables higher operating frequency
  • System cost reduction savings
  • Reduces EMI
