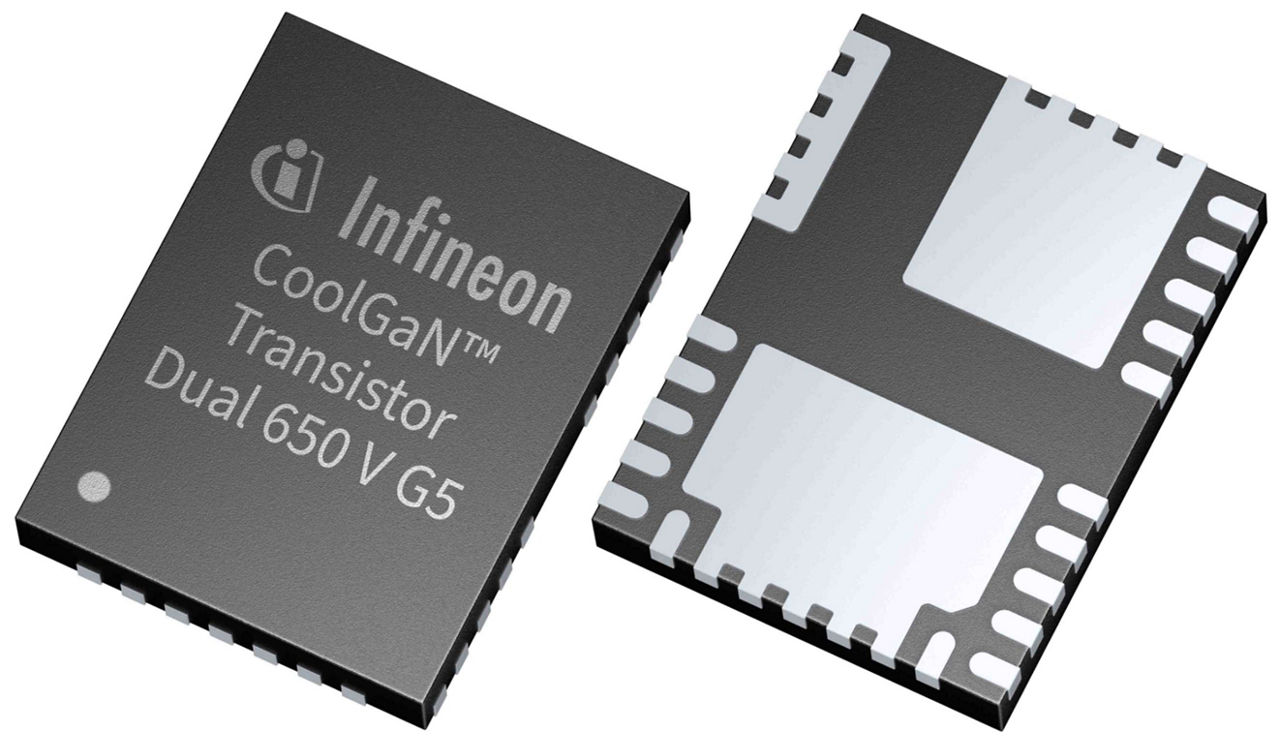

IGI65D1414A3MS

Two 140 mΩ / 650 V GaN tranistors in half-bridge configuration
Data Sheet
package
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IGI65D1414A3MS
IGI65D1414A3MS
ea.
Data Sheet

Product details

  • Family
    CoolGaN™ Transistor Dual 650 V G5
  • Green
    RoHS compliant, Halogen free
  • Package
    QFN-32
  • Planned to be available until at least
    2035
  • Qualification
    Industrial
  • RDS (on) (typ)
    140 mΩ
  • VDS max
    650 V
Recommended
OPN
IGI65D1414A3MSXUMA1
Product Status active and preferred
Infineon Package
PG-TIQFN-32
Package Name N/A
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-TIQFN-32
Package Name -
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
IGI65D1414A3MS combines a half-bridge power stage consisting of two 140 mΩ(RDS(on) typ.) / 650 V enhancement mode CoolGaN™ Transistors in a small 6x8 mm QFN-32 package. This product is ideally suited to enable high-power density designs of AC-DC chargers and adapters, low-power motor drives and lighting applications, utilizing the superior switching behavior of CoolGaN™ Transistors.

Features

  • Ultra-fast switching
  • No reverse-recovery charge
  • Capable of reverse conduction
  • Low gate charge
  • Low output charge
  • Kelvin source connection

Benefits

  • 2x reduced component count vs. discrete
  • Reduced cost
  • Reduced weight
  • Reduced system complexity

Applications
