The IFX24401TE V50 is a monolithic integrated low-drop voltage regulator for load currents up to 300 mA.

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IFX24401TE V50
IFX24401TE V50


Product details

  • Accuracy
    2 %
  • Dropout Voltage
    250 mV
  • Early Warning
    No
  • Enable (=Inhibit)
    Yes
  • Hold
    No
  • Moisture Sensitivity Level
    1
  • Number Reflow
    3
  • Operating Temperature range
    -40 °C to 125 °C
  • Operating Voltage range
    5.5 V to 42 V
  • Output Voltage Type
    5 V
  • Over Voltage Protection
    No
  • Peak Reflow Temp max
    260 °C
  • Power Fail
    No
  • Power Good
    No
  • Product ID
    SP000660598
  • Qualification
    Industrial
  • Quiescent Current
    20 µA
  • Regulator Type
    Linear
  • Replacement
    TLE7276-2D
  • Reset
    No
  • Status Output
    No
  • Watchdog
    No

OPN
Product Status
Infineon Package
Package Name
Packing Size
Packing Type
Moisture Level
Moisture Packing
Lead-free
Halogen Free
RoHS Compliant
The IFX24401 is designed for harsh environments, ensuring stable operation with low ESR ceramic output capacitors down to 470 nF. It's protected against overload, short circuit, and overtemperature, ideal for battery-powered applications with ultra-low stand-by current consumption of 20 µA (typ.). Additionally, it features integrated output sink current circuitry for device protection.

Features

  • Output voltage 5 V ±2%
  • Ultra low current consumption: 20 µA (typ.)
  • 300 mA current capability
  • DPAK/TO252-5 Package
  • Enable input
  • Very low-drop voltage
  • Short circuit protection
  • Overtemperature protection
  • Low Dropout Voltage, 250mV (typ.)
  • High Input Voltage 45 V
  • Temperature Range -40 °C ≤ T j ≤ 125 °C
  • Green Product (RoHS compliant)

Benefits

  • Lowest Current Consumption with High Input Voltage capability
  • Optimised for battery powered systems
  • Wide Temperature Range

Applications

Diagrams

IFX24401_PG-TO252-5_Pinout
IFX24401_PG-TO252-5_Pinout
IFX24401_PG-TO252-5_Pinout IFX24401_PG-TO252-5_Pinout IFX24401_PG-TO252-5_Pinout

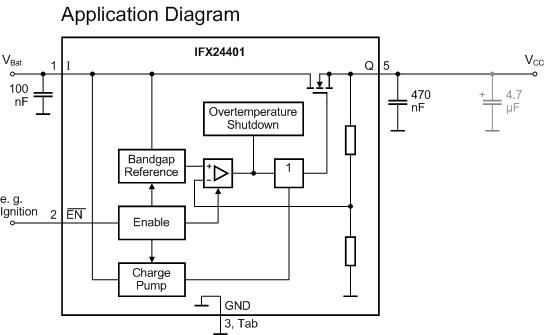

Application_Diagram_IFX24401 Application_Diagram_IFX24401 Application_Diagram_IFX24401

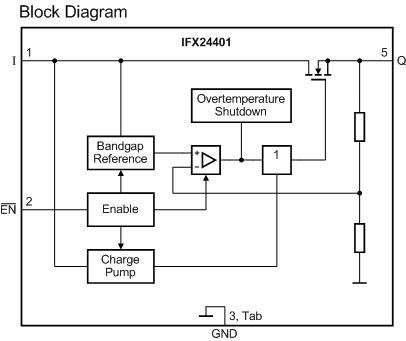

Block_Diagram_IFX24401 Block_Diagram_IFX24401 Block_Diagram_IFX24401
×
