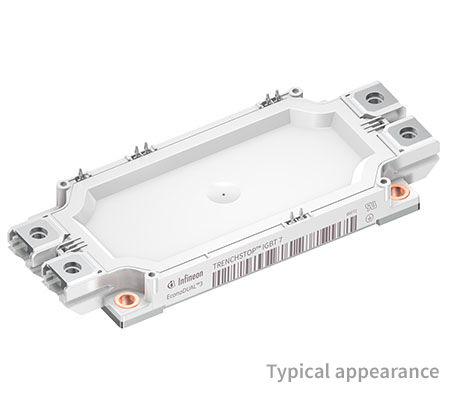

IFF750B12ME7_B11

1200 V, 750 A dual IGBT module
Data Sheet
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

IFF750B12ME7_B11
IFF750B12ME7_B11
ea.
Data Sheet

Product details

  • Configuration
    half-bridge
  • Dimensions (width)
    62 mm
  • Dimensions (length)
    152 mm
  • Features
    PressFIT, Current sense shunts
  • Housing
    EconoDUAL™ 3
  • IC(nom) / IF(nom)
    750 A
  • IC max
    750 A
  • Qualification
    Industrial
  • Technology
    IGBT7 - E7
  • VCE(sat) (Tvj=25°C typ)
    1.5 V
  • VCES / VRRM
    1200 V
  • VF (Tvj=25°C typ)
    1.8 V
  • Voltage Class max
    1200 V
Recommended
OPN
IFF750B12ME7B11BPSA1
Product Status active and preferred
Infineon Package AG-ECONOD
Package Name N/A
Packing Size 10
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package AG-ECONOD
Package Name -
Packing Size 10
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
EconoDUAL™ 3 1200 V, 750 A dual TRENCHSTOP™ IGBT7 module with emitter controlled 7 diode, NTC, integrated shunts and PressFIT contact technology.

Features

  • Highest power density
  • Tvj op = 175°C overload
  • Improved terminals
  • PressFIT control pins and screw power terminals
  • Integrated shunts resistors for direct current measurement
  • Integrated NTC temperature sensor
  • Isolated baseplate
  • Compact and robust design with molded terminals
  • Solderable press-fit auxiliary terminals

Benefits

  • Higher inverter output current for the same frame size
  • Avoidance of paralleling of IGBT modules
  • Reduced system costs by simplification of the inverter systems
  • Easy and most reliable assembly
  • High inter-connection reliability
  • Suitable for press-in & soldering process

Documents

Documents

Design resources

Partner solutions

Developer community
